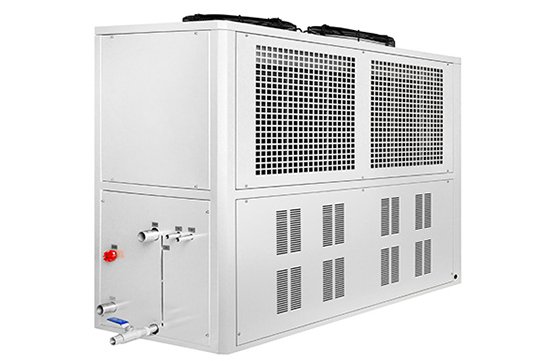

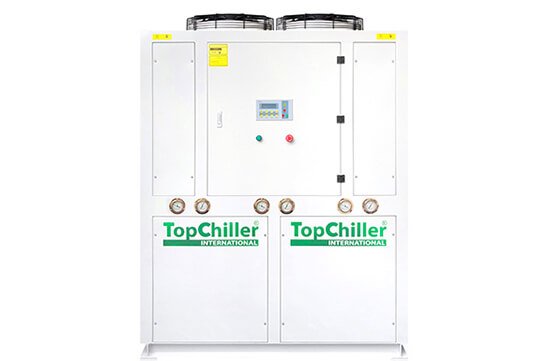

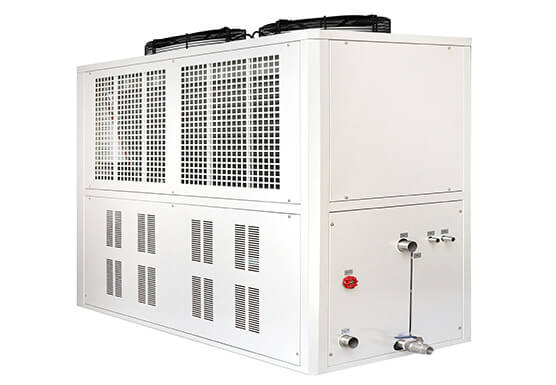

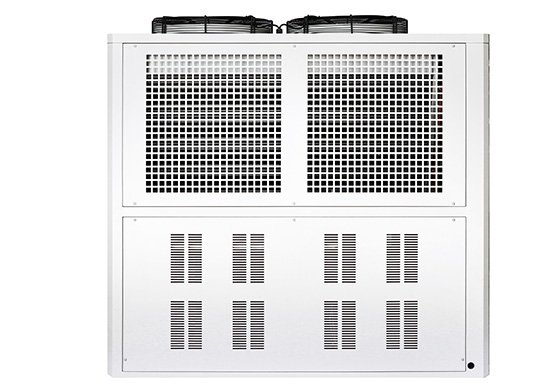

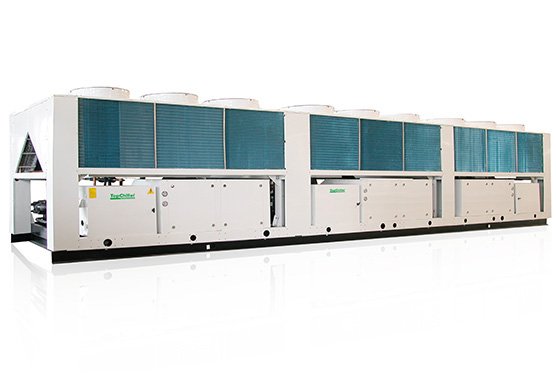

TopChiller can design and manufacture all types of Ozone Generator Chiller&Water Cooling System
- Cooling capacity ranges from 7KW to 280KW
- Temperature control ranges 50°F to 59°F
- Top branded hermetic scroll compressor
- Stainless steel tank coil & heat exchanger
- Thermostatic expansion valve & water tank
- Full automatic PLC temperature controller
- Low power consumption & easy repairing
- Air and Water-cooled energy-efficient condenser
Your Professional Ozone Generator Chiller&Water Cooling System Manufacturer and Supplier
Ozone Generator Chiller& Water Cooling System is a cooling device that is used to cool ozone generator for ozone formation by using chilled water circulation.
TopChiller is a worldwide and independent company of China working for last twenty years to manufacture research-based and developed Ozone Generator Chiller& Water Cooling System for whole world market place.
TopChiller is offering a standardized featured full line of Ozone Generator Chiller& Water Cooling System models and steadily supplying to all over the world marketplace with assured credibility.
Scroll compressor, thermal heat exchanger, evaporator, water tank, water pump, condenser coils, protection system, power supply and automated PLC temperature controller, refrigeration circuit, are the basic leading components of Ozone Generator Chiller& Water Cooling System.
TopChiller designed Ozone Generator Chiller& Water Cooling System has its outstanding benefits in ozone generation process as given below:
- Ozone Generator Chiller& Water Cooling System is configured with a water-cooled circulation system that ensures the constant cooling production around ozone generator by circulating coils absorbing heat and transferring it to condenser and release from system.
- Ozone generator produces ozone at low ambient temperature by adding oxygen in atmospheric oxygen or through the photochemical process. High-temperature breakdown the ozone components. TopChiller brand Ozone Generator Chiller& Water Cooling System regulates temperature by using temperature-sensitive sensors and an automatic PLC controller.
- Good quality water installation and stainless steel heat exchanger prevents the scaling and corrosive damage of heat exchanger ensuring the efficient and flawless performance of the unit.
- Ozone Generator Chiller& Water Cooling System makes better the quality of water by using water filters to remove chloride ions from water if it goes elevated from 50ppm ensuring fluency and prevention from corrosion.
- Three types of water circulation as a closed-loop, indirect, and once through circulation is being used inside Ozone Generator Chiller& Water Cooling System enabling versatility of the unit.
Ozone Generator Chiller& Water Cooling System has its wide application in ozone production and atmospheric temperature controlling processing as:
Anti-scaling and anti-corrosion agents, acid dosages, water treatment, storage and transport costs of chemical biocides, etc.
Are you searching for a steadfast energy-efficient cooling producing Ozone Generator Chiller& Water Cooling System for your application?
Are you thinking to make an association with a reliable company, manufacturing Ozone Generator Chiller& Water Cooling System to support your business?
You are on the right way. Make ensure to contact with TopChiller sales and personnel to get updates and purchase the assistance of an Ozone Generator Chiller& Water Cooling System for your application at reasonable costs.
Our team is directed to move ahead by providing repairing solutions, technical assistance, and buying support to our customers.
- Data Sheet
- Image Gallery
- Main Parts
- Video
Ozone Generator Chiller&Water Cooling System Technical Specifications | ||||||||||||||
Items Model | AC-0.5A | AC-1A | AC-1.5A | AC-2A | AC-2.5A | AC-3A | AC-4A | AC-5A | AC-6A | AC-8AD | AC-10AD | AC-12AD | AC-15AD | |
Cooling capacity | Kcal/h 50HZ/60HZ | 1419 | 2451 | 3182 | 4833 | 5848 | 7181 | 9288 | 11988 | 14534 | 18576 | 23994 | 29068 | 38270 |
1703 | 2941 | 3784 | 5800 | 7018 | 8617 | 11146 | 14386 | 17441 | 22291 | 28793 | 34882 | 45924 | ||
KW 50HZ/60HZ | 1.65 | 2.85 | 3.7 | 5.62 | 6.8 | 8.35 | 10.8 | 13.94 | 16.9 | 21.6 | 27.9 | 33.8 | 44.5 | |
1.98 | 3.42 | 4.4 | 6.74 | 8.2 | 10.02 | 12.96 | 16.73 | 20.28 | 25.92 | 33.48 | 40.56 | 53.4 | ||
Input power | KW | 0.88 | 1.35 | 2 | 2.25 | 2.66 | 3.27 | 4.07 | 5.75 | 6.45 | 8.25 | 11.5 | 12.9 | 17.45 |
Max Current | A | 5.4 | 8.2 | 12 | 13.6 | 6.6 | 8.2 | 10.1 | 13.8 | 15.5 | 20 | 27.9 | 31.3 | 42.4 |
Power source | 1PH~220V/3PH~220V/380V 50HZ/60HZ | 3PH~380V/415V/480V~50HZ/60HZ(3PH~200V/220V 50HZ/60HZ) | ||||||||||||
Refrigerant | Type | R22/R407C/134a/404A/410A | ||||||||||||
Control | Capillary / thermostatic expansion valve | |||||||||||||
Compressor | Type | Hermetic Rotary | Hermetic scroll ( piston ) | |||||||||||
Power(KW) | 0.45 | 0.89 | 1.3 | 1.73 | 2.1 | 2.7 | 3.5 | 4.55 | 5.25 | 3.5×2 | 4.55×2 | 5.25×2 | 7×2 | |
Condenser | Type | Efficient finned copper tube with aluminum+low noise external rotor fan | ||||||||||||
Air flow (m3/h) | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | |
Air blower(KW) | 0.06 | 0.09 | 0.15 | 0.15 | 0.19 | 0.14×2 | 0.14×2 | 0.19×2 | 0.19×2 | 0.25×2 | 0.45×2 | 0.45×2 | 0.6×2 | |
Evaporator | Type | SS Tank coil / shell and tube type / Plate type heat exchanger | ||||||||||||
Chilled water (m3/h) | 0.28 | 0.49 | 0.64 | 0.97 | 1.12 | 1.44 | 1.86 | 2.4 | 2.91 | 3.71 | 4.8 | 5.81 | 7.65 | |
0.34 | 0.59 | 0.76 | 1.16 | 1.4 | 1.72 | 2.23 | 2.88 | 3.49 | 4.46 | 5.76 | 7 | 9.18 | ||
Water tank(L) | 10.6 | 18.3 | 27 | 27 | 50 | 50 | 60 | 60 | 110 | 120 | 200 | 200 | 270 | |
Inlet/outlet pipe (inch) i | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1″ | 1″ | 1″ | 1″ | 1″ | 1-1/2″ | 2″ | 2″ | 2″ | |
Water pump | Power (kw) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 |
Max lift(m) | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 30 | 30 | 25 | 25 | 25 | 28 | |
Max flow (m3) | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 8.1 | 8.1 | 8.1 | 13.5 | 13.5 | 25.2 | |
Safety protection | Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection | |||||||||||||
Dimension | L(mm) | 550 | 550 | 600 | 600 | 720 | 980 | 980 | 1150 | 1150 | 1350 | 1500 | 1500 | 1860 |
W(mm) | 350 | 450 | 500 | 500 | 550 | 520 | 520 | 560 | 560 | 680 | 760 | 760 | 850 | |
H(mm) | 695 | 845 | 985 | 985 | 1350 | 1170 | 1170 | 1215 | 1215 | 1530 | 1660 | 1660 | 1900 | |
Net weight(KG) | 45 | 62 | 85 | 95 | 125 | 152 | 175 | 185 | 215 | 283 | 345 | 382 | 580 | |
Note: The above specifications are according to the following design conditions: 1, 12℃/7℃.Chilled water inlet/outlet temperature 12℃/7℃. 2, 33℃/38℃.Cooling air inlet/outlet temperature 33℃/38℃. We reserve the right to modify the specification without further notice. |
Ozone Generator Chiller&Water Cooling System Technical Specifications | |||||||||||||
Items Model | AC-15AT | AC-20AD | AC-20AF | AC-25AD | AC-25AF | AC-30AD | AC-30AT | AC-40AD | AC-40AF | AC-50AD | AC-50AF | AC-60AD | |
Cooling capacity | Kcal/h 50HZ/60HZ | 36120 | 49966 | 47988 | 58480 | 58136 | 74734 | 74922 | 98040 | 99760 | 119024 | 116960 | 144996 |
43344 | 59959 | 57586 | 70176 | 69763 | 89681 | 89990 | 117648 | 119712 | 142829 | 140352 | 173995 | ||
KW 50HZ/60HZ | 42 | 58.1 | 55.8 | 68 | 67.6 | 86.9 | 87.2 | 114 | 116 | 138.4 | 136 | 168.6 | |
50.4 | 69.72 | 66.96 | 81.6 | 81.12 | 104.28 | 104.64 | 136.8 | 139.2 | 166.08 | 163.2 | 202.3 | ||
Input power | KW | 17.1 | 21.73 | 22 | 25.4 | 24.8 | 33.39 | 33.1 | 44.91 | 43.3 | 57.3 | 54 | 65 |
Max Current | A | 43.2 | 52.7 | 53.3 | 63.7 | 61.3 | 81 | 80.2 | 109 | 106 | 135.5 | 128.5 | 135 |
Power source | 3PH~380V/415V/480V~50HZ/60HZ(3PH~200V/220V 50HZ/60HZ) | ||||||||||||
Refrigerant | Type | R22/R407C/134a/404A/410A | |||||||||||
Control | Capillary / Thermostatic expansion valve | ||||||||||||
Compressor | Type | Hermetic scroll ( piston ) | |||||||||||
Power(KW) | 4.55×3 | 8.96×2 | 4.55×4 | 10.8×2 | 5.25×4 | 13.62×2 | 8.96×3 | 18.78×2 | 8.96×4 | 23.6×2 | 10.8×4 | 27.4×2 | |
Condenser | Type | Efficient finned copper tube with aluminum+low noise external rotor fan | |||||||||||
Air flow (m³/h) | 15000 | 20000 | 20000 | 25000 | 25000 | 30000 | 30000 | 40000 | 40000 | 50000 | 50000 | 60000 | |
Air blower(KW) | 0.6×2 | 0.78×2 | 0.78×2 | 0.78×2 | 0.78×2 | 0.42×6 | 0.42×6 | 0.6×6 | 0.6×6 | 0.78×6 | 0.78×6 | 0.78×6 | |
Evaporator | Type | SS Tank coil/ shell and tube type/Plate type heat exchanger | |||||||||||
Chilled water (m³/h) | 7.22 | 10 | 9.6 | 11.69 | 11.62 | 14.94 | 15 | 19.6 | 19.95 | 23.8 | 23.4 | 29 | |
8.67 | 11.99 | 11.51 | 14.03 | 13.95 | 17.93 | 18 | 23.52 | 23.94 | 28.6 | 28.1 | 34.8 | ||
Water tank(L) | 270 | 350 | 350 | 350 | 350 | 420 | 420 | 580 | 580 | 580 | 580 | 580 | |
inlet/outlet pipe (inch) | 2″ | 2″ | 2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ | 3″ | 3″ | 3″ | 3″ | 3″ | |
Water pump | Power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 4 | 4 | 4 | 4 | 5.5 | 5.5 | 5.5 |
Max lift(m) | 28 | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 | 32 | 32 | 32 | |
Max flow (m³) | 25.2 | 25.2 | 25.2 | 25.2 | 25.2 | 36 | 36 | 36 | 36 | 40 | 40 | 40 | |
Safety devices | Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection | ||||||||||||
Dimension | L(mm) | 1860 | 2020 | 2020 | 2020 | 2020 | 2200 | 2200 | 2350 | 2350 | 2600 | 2600 | 2600 |
W(mm) | 850 | 950 | 950 | 950 | 950 | 1150 | 1150 | 1350 | 1350 | 1500 | 1500 | 1500 | |
H(mm) | 1900 | 2000 | 2000 | 2000 | 2000 | 1980 | 1980 | 2000 | 2000 | 2100 | 2100 | 2100 | |
Net weight(KG) | 580 | 650 | 650 | 810 | 810 | 890 | 890 | 1112 | 1112 | 1320 | 1320 | 1320 | |
Note: The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Cooling air inlet/outlet temperature 33℃/38℃. We reserve the right to modify the specification without further notice. |
