TopChiller can design and manufacture all types of food&beverage processing chillers
- Cooling capacity ranges from 1 ton to 200 ton
- Temperature control ranges -25℃to 15℃

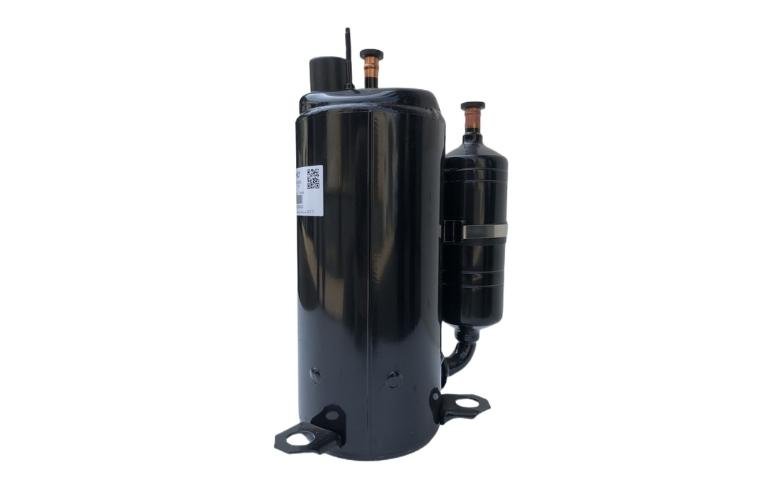

- Hermetic scroll / reciprocating compressor
- Nickel plating energy-efficient evaporator
- Large insulated polyethylene reservoir

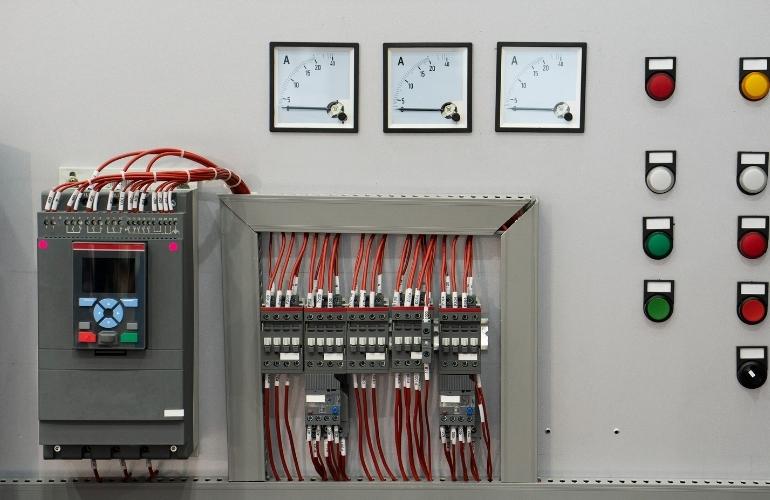

- Microprocessor temperature controller
- SS food grade & nonferrous fluid circuit

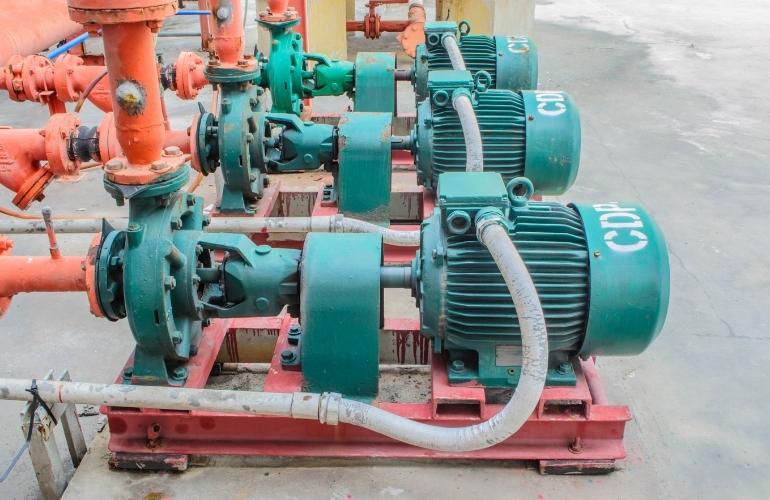

- Hot gas bypass, and pressure pumps
Your Professional Food&Beverage Processing Chiller Manufacturer and Supplier Over 20 Years
Food& Beverage Processing Chiller is a cooling device equipped with food-grade water-end components producing a cooling effect for food processing by releasing extra heat from the machine by using chilled water circulation.
TopChiller is the most preferred and renowned company of China, persistently working for manufacturing of Food& Beverage Processing Chiller since 1999 providing automated and built-in customized services to clients.
TopChiller has offered a variant range of Food& Beverage Processing Chiller models to worldwide customers, retailers, and stakeholders ultimately earning worldwide Clientele fame on a global map.
Food& Beverage Processing Chiller is composed of some basic components as scroll /reciprocating compressor, heat exchangers, air/water-cooled condenser, nickel-coated evaporator, water tank, water pump, microprocessor temperature Controller, hot gas bypass, power supply, and control panel.
TopChiller designed Food& Beverage Processing Chiller has a diverse number of benefits supporting the beverage industry as given below:
- Food& Beverage Processing Chiller is featured with circulating coils filled with chilled water providing chilling effect to food processing machines by exchanging heat with cooling and releasing it out steadily from the unit.
- TopChiller designed Food& Beverage Processing Chiller is highly reliable and versatile in its operation featured by customized sizing of a unit with a perspective of application requirements and control panels diagnosing heat, pressure, and temperature load at a time.
- Food& Beverage Processing Chiller supports the food preservation process, stable packaging of food and beverage featured by the use of resistive heat exchanger and solenoid valves ensuring the release of regulated cooling for machine and kills hazardous microbes in processed packing food.
- TopChiller engineered Food& Beverage Processing Chiller is configured with an energy-efficient condenser ensuring the steadfast release of heat either by ambient chilled air or water for food taste and texture maintenance.
- Food& Beverage Processing Chiller is equipped with environment-friendly stainless steel material, corrosion sensitive coils ensures lower cost of maintenance and easy installation.

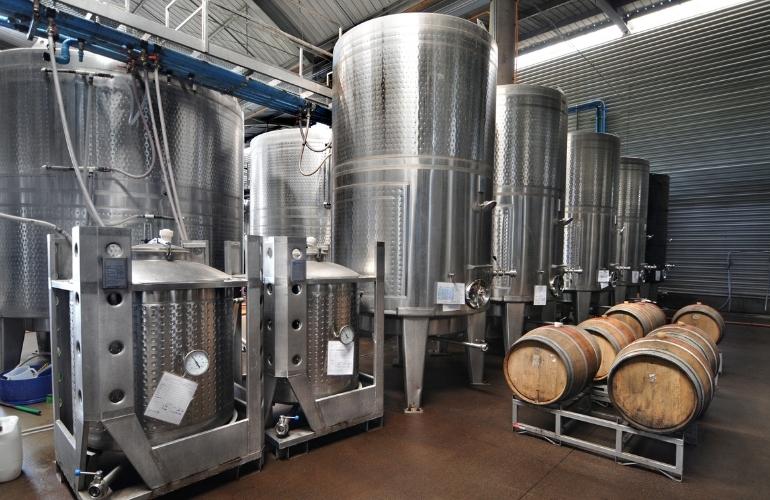

Food& Beverage Processing Chiller is renowned in different fermentation and food processing applications as:
Wort cooling, beverage industry, bakery products, wine production, grocery stores, meat processing, fermentation industries, food preservation, dough mixing, quench tanks cooling, food Pre- packaging, commercial yogurt processing, etc.
Are you seeking the best reliable and tight temperature regulating Food& Beverage Processing Chiller for your application?
Are you inquiring to find the best supporting and collaborative company of China manufacturing Food& Beverage Processing Chiller with certified credentials to promote your business?
You have selected the best platform. TopChiller is a trustworthy company promptly fulfilling customers’ requirements credibly. Just move ahead and make contact with TopChiller sales and expert personnel for full updates and technical assistance about Food& Beverage Processing Chiller purchase.
TopChiller Company is committed to helping our customers with repairing solutions, technical support, and Food& Beverage Processing Chiller customized purchasing at the best rates.
General Description:
Food and Beverage Processing Chiller is an excellent cooling unit that is fabricated with food-grade water circuiting, dissipating system heat by glycol/water circulation.
Food and Beverage Processing Chiller designed by TopChiller comes with different food-grade components for cooling operation of processing food as scroll/screw compressor, air/water-cooled condenser for rejecting heat in the environment, heat exchanger collecting the system heat, and solenoid valves. The microprocessor controller regulates the temperature and flavoring of the beer.
TopChiller is a reputing manufacturer and supplier that has designed Food and Beverage Processing Chiller in a large variety for food processing applications such as wort cooling, wineries, yogurt production, meat processing, cideries, beverage industry, food packaging, food storage, fermentation, cold tables, ice cream production, and bakeries.
The main motive of TopChiller is to serve the global markets with its credible Food and Beverage Processing Chillers under customer satisfaction.
We have proudly increased the profitability and production rate of different food processing industries by offering heavy-duty cooling systems.
For high-quality beer production and food preservation, make sure to install the Food and Beverage Processing Chiller of the TopChiller brand.
So without making any delay, contact us and secure your order; you will enjoy the quality and reasonable rates of our prime quality food processing cooling systems.
TopChiller can help you to customize your Food and Beverage Processing Chiller according to your requirements.
Features and Advantages:
The Food and Beverage Processing Chiller is a unique designed cooling unit that offers various benefits as given below:

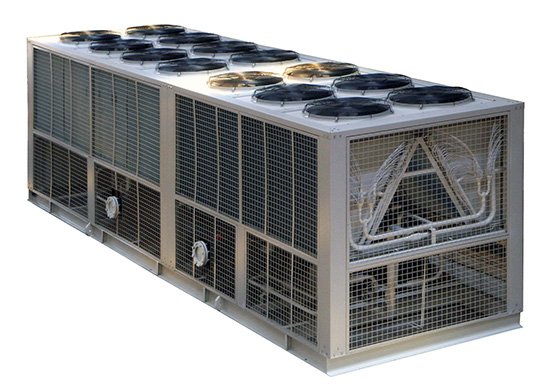

- The air/water-cooled condenser coils are integrated with the unit assuring the heat dissipation of the system that comes along with the refrigerant.
- The heat exchanger and refrigerant installation maintain the food texture and taste under temperature regulation. The glycol/water coolant circulation from heat the exchanger retains the system’s temperature at the set point.
- Fabrication of dual or multiple refrigeration systems increases the redundancy and durability of the unit. Fault in one refrigeration circulation does not affect the operation as other refrigeration cycles start operation.
- Stainless steel material design makes the unit environment-friendly and durable. While the copper and aluminum coils and tubing corrosion resistance and protection. Anti-freezing glycol coolant also prevents the unit from damaging.
- An assorted number of customized options make the unit versatile and suitable for a variety of applications. Dual circuiting, air/water-cooled condenser, control units, and VPD pumps can be integrated for customization services.
- Data Sheets
- Image Gallery
- Main Parts
- Video
| Food&Beverage Processing Chiller Technical Specifications | ||||||||||||||
| Items Model | AC-0.5A | AC-1A | AC-1.5A | AC-2A | AC-2.5A | AC-3A | AC-4A | AC-5A | AC-6A | AC-8AD | AC-10AD | AC-12AD | AC-15AD | |
| Cooling capacity | Kcal/h 50HZ/60HZ | 1419 | 2451 | 3182 | 4833 | 5848 | 7181 | 9288 | 11988 | 14534 | 18576 | 23994 | 29068 | 38270 |
| 1703 | 2941 | 3784 | 5800 | 7018 | 8617 | 11146 | 14386 | 17441 | 22291 | 28793 | 34882 | 45924 | ||
| KW 50HZ/60HZ | 1.65 | 2.85 | 3.7 | 5.62 | 6.8 | 8.35 | 10.8 | 13.94 | 16.9 | 21.6 | 27.9 | 33.8 | 44.5 | |
| 1.98 | 3.42 | 4.4 | 6.74 | 8.2 | 10.02 | 12.96 | 16.73 | 20.28 | 25.92 | 33.48 | 40.56 | 53.4 | ||
| Input power | KW | 0.88 | 1.35 | 2 | 2.25 | 2.66 | 3.27 | 4.07 | 5.75 | 6.45 | 8.25 | 11.5 | 12.9 | 17.45 |
| Max Current | A | 5.4 | 8.2 | 12 | 13.6 | 6.6 | 8.2 | 10.1 | 13.8 | 15.5 | 20 | 27.9 | 31.3 | 42.4 |
| Power source | 1PH~220V/3PH~220V/380V 50HZ/60HZ | 3PH～380V/415V/480V～50HZ/60HZ(3PH～200V/220V 50HZ/60HZ) | ||||||||||||

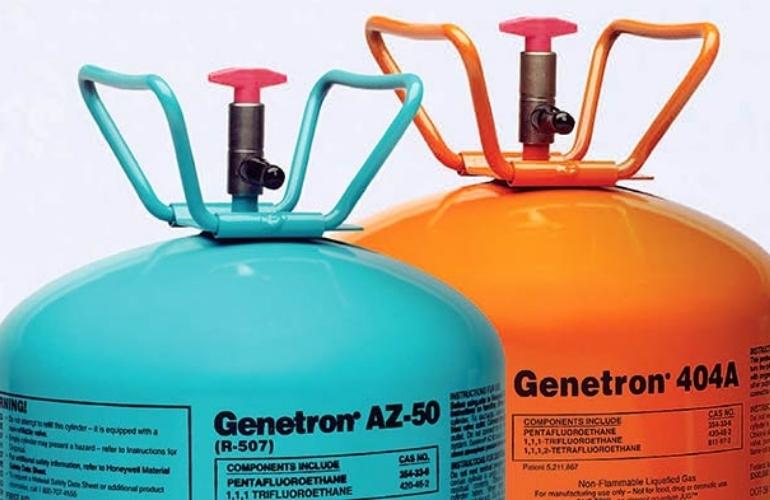

| Refrigerant | Type | R22/R407C/134a/404A/410A | ||||||||||||
| Control | Capillary / thermostatic expansion valve | |||||||||||||
| Compressor | Type | Hermetic Rotary | Hermetic scroll ( piston ) | |||||||||||
| Power(KW) | 0.45 | 0.89 | 1.3 | 1.73 | 2.1 | 2.7 | 3.5 | 4.55 | 5.25 | 3.5×2 | 4.55×2 | 5.25×2 | 7×2 | |
| Condenser | Type | Efficient finned copper tube with aluminum+low noise external rotor fan | ||||||||||||
| Air flow (m3/h) | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | |
| Air blower（KW） | 0.06 | 0.09 | 0.15 | 0.15 | 0.19 | 0.14×2 | 0.14×2 | 0.19×2 | 0.19×2 | 0.25×2 | 0.45×2 | 0.45×2 | 0.6×2 | |

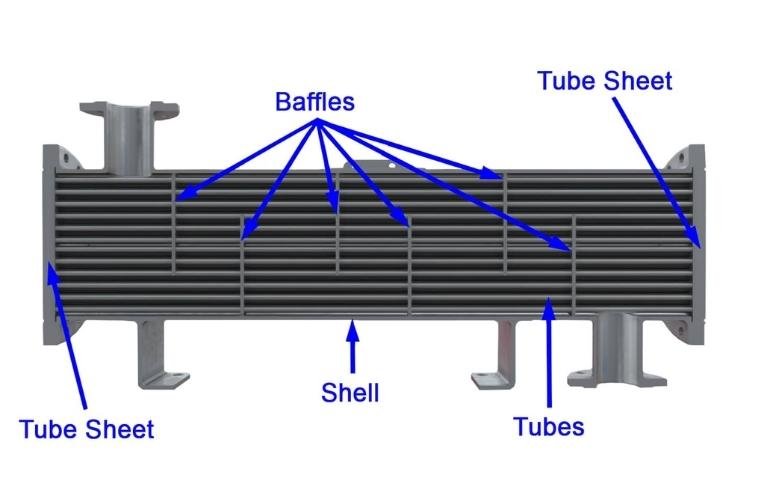

| Evaporator | Type | SS Tank coil / shell and tube type / Plate type heat exchanger | ||||||||||||
| Chilled water (m3/h) | 0.28 | 0.49 | 0.64 | 0.97 | 1.12 | 1.44 | 1.86 | 2.4 | 2.91 | 3.71 | 4.8 | 5.81 | 7.65 | |
| 0.34 | 0.59 | 0.76 | 1.16 | 1.4 | 1.72 | 2.23 | 2.88 | 3.49 | 4.46 | 5.76 | 7 | 9.18 | ||
| Water tank(L) | 10.6 | 18.3 | 27 | 27 | 50 | 50 | 60 | 60 | 110 | 120 | 200 | 200 | 270 | |
| Inlet/outlet pipe (inch) i | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1″ | 1″ | 1″ | 1″ | 1″ | 1-1/2″ | 2″ | 2″ | 2″ | |
| Water pump | Power (kw) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 |
| Max lift(m) | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 30 | 30 | 25 | 25 | 25 | 28 | |
| Max flow (m3) | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 8.1 | 8.1 | 8.1 | 13.5 | 13.5 | 25.2 | |
| Safety protection | Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection | |||||||||||||
| Dimension | L(mm) | 550 | 550 | 600 | 600 | 720 | 980 | 980 | 1150 | 1150 | 1350 | 1500 | 1500 | 1860 |
| W(mm) | 350 | 450 | 500 | 500 | 550 | 520 | 520 | 560 | 560 | 680 | 760 | 760 | 850 | |
| H(mm) | 695 | 845 | 985 | 985 | 1350 | 1170 | 1170 | 1215 | 1215 | 1530 | 1660 | 1660 | 1900 | |
| Net weight（KG） | 45 | 62 | 85 | 95 | 125 | 152 | 175 | 185 | 215 | 283 | 345 | 382 | 580 | |
| Note: The above specifications are according to the following design conditions: 1, 12℃/7℃.Chilled water inlet/outlet temperature 12℃/7℃. 2, 33℃/38℃.Cooling air inlet/outlet temperature 33℃/38℃. We reserve the right to modify the specification without further notice. | ||||||||||||||
| Food&Beverage Processing Chiller Technical Specifications | |||||||||||||
| Items Model | AC-15AT | AC-20AD | AC-20AF | AC-25AD | AC-25AF | AC-30AD | AC-30AT | AC-40AD | AC-40AF | AC-50AD | AC-50AF | AC-60AD | |
| Cooling capacity | Kcal/h 50HZ/60HZ | 36120 | 49966 | 47988 | 58480 | 58136 | 74734 | 74922 | 98040 | 99760 | 119024 | 116960 | 144996 |
| 43344 | 59959 | 57586 | 70176 | 69763 | 89681 | 89990 | 117648 | 119712 | 142829 | 140352 | 173995 | ||
| KW 50HZ/60HZ | 42 | 58.1 | 55.8 | 68 | 67.6 | 86.9 | 87.2 | 114 | 116 | 138.4 | 136 | 168.6 | |
| 50.4 | 69.72 | 66.96 | 81.6 | 81.12 | 104.28 | 104.64 | 136.8 | 139.2 | 166.08 | 163.2 | 202.3 | ||
| Input power | KW | 17.1 | 21.73 | 22 | 25.4 | 24.8 | 33.39 | 33.1 | 44.91 | 43.3 | 57.3 | 54 | 65 |
| Max Current | A | 43.2 | 52.7 | 53.3 | 63.7 | 61.3 | 81 | 80.2 | 109 | 106 | 135.5 | 128.5 | 135 |
| Power source | 3PH～380V/415V/480V～50HZ/60HZ(3PH～200V/220V 50HZ/60HZ) | ||||||||||||
| Refrigerant | Type | R22/R407C/134a/404A/410A | |||||||||||
| Control | Capillary / Thermostatic expansion valve | ||||||||||||
| Compressor | Type | Hermetic scroll ( piston ) | |||||||||||
| Power(KW) | 4.55×3 | 8.96×2 | 4.55×4 | 10.8×2 | 5.25×4 | 13.62×2 | 8.96×3 | 18.78×2 | 8.96×4 | 23.6×2 | 10.8×4 | 27.4×2 | |
| Condenser | Type | Efficient finned copper tube with aluminum+low noise external rotor fan | |||||||||||
| Air flow (m³/h) | 15000 | 20000 | 20000 | 25000 | 25000 | 30000 | 30000 | 40000 | 40000 | 50000 | 50000 | 60000 | |
| Air blower（KW） | 0.6×2 | 0.78×2 | 0.78×2 | 0.78×2 | 0.78×2 | 0.42×6 | 0.42×6 | 0.6×6 | 0.6×6 | 0.78×6 | 0.78×6 | 0.78×6 | |
| Evaporator | Type | SS Tank coil/ shell and tube type/Plate type heat exchanger | |||||||||||
| Chilled water (m³/h) | 7.22 | 10 | 9.6 | 11.69 | 11.62 | 14.94 | 15 | 19.6 | 19.95 | 23.8 | 23.4 | 29 | |
| 8.67 | 11.99 | 11.51 | 14.03 | 13.95 | 17.93 | 18 | 23.52 | 23.94 | 28.6 | 28.1 | 34.8 | ||
| Water tank(L) | 270 | 350 | 350 | 350 | 350 | 420 | 420 | 580 | 580 | 580 | 580 | 580 | |
| inlet/outlet pipe (inch) | 2″ | 2″ | 2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ | 3″ | 3″ | 3″ | 3″ | 3″ | |
| Water pump | Power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 4 | 4 | 4 | 4 | 5.5 | 5.5 | 5.5 |
| Max lift(m) | 28 | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 | 32 | 32 | 32 | |
| Max flow (m³) | 25.2 | 25.2 | 25.2 | 25.2 | 25.2 | 36 | 36 | 36 | 36 | 40 | 40 | 40 | |
| Safety devices | Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection | ||||||||||||
| Dimension | L（mm） | 1860 | 2020 | 2020 | 2020 | 2020 | 2200 | 2200 | 2350 | 2350 | 2600 | 2600 | 2600 |
| W（mm） | 850 | 950 | 950 | 950 | 950 | 1150 | 1150 | 1350 | 1350 | 1500 | 1500 | 1500 | |
| H（mm） | 1900 | 2000 | 2000 | 2000 | 2000 | 1980 | 1980 | 2000 | 2000 | 2100 | 2100 | 2100 | |
| Net weight（KG） | 580 | 650 | 650 | 810 | 810 | 890 | 890 | 1112 | 1112 | 1320 | 1320 | 1320 | |
| Note: The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Cooling air inlet/outlet temperature 33℃/38℃. We reserve the right to modify the specification without further notice. | |||||||||||||
| Food&Beverage Processing Chiller Technical Specifications | |||||||||||

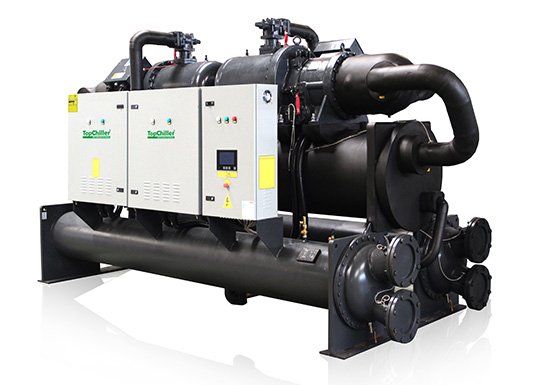

| Model Items | AW-3W | AW-4W | AW-5W | AW-6W | AW-8WD | AW-10WD | AW-12WD | AW-15WD | AW-15WT | AW-20WD | |
| Cooling Capacity | kcal/h 50HZ/60HZ | 8170 | 11266 | 14018 | 16340 | 22532 | 28036 | 32680 | 43172 | 42140 | 56760 |
| 9804 | 13519 | 16822 | 19608 | 27038 | 33643 | 39216 | 51806 | 50568 | 68112 | ||
| KW 50HZ/60HZ | 9.5 | 13.1 | 16.3 | 19 | 26.2 | 32.6 | 38 | 50.2 | 49 | 66 | |
| 11.4 | 15.72 | 19.56 | 22.8 | 31.44 | 39.12 | 45.6 | 60.24 | 58.8 | 79.2 | ||
| Input Power | KW | 3.07 | 3.87 | 5.3 | 5.95 | 7.75 | 10.6 | 11.9 | 16.25 | 15.85 | 19.71 |
| Max Current | A | 7.5 | 9.4 | 12.9 | 14.4 | 18,8 | 25.7 | 28.9 | 39.4 | 38.2 | 47.8 |
| power source | 3PH～380V/415V/480V～50HZ/60HZ(3PH～200V/220V 50HZ/60HZ) | ||||||||||
| Refrigerant | Type | R22/R407C/134a/404A/410A | |||||||||
| Control | Capillary / Thermostatic expansion valve | ||||||||||
| Compressor | Type | Hermetic scroll ( piston ) | |||||||||
| Power(KW) | 2.7 | 3.5 | 4.55 | 5.2 | 3.5×2 | 4.55×2 | 5.2×2 | 7×2 | 4.55×3 | 8.96×2 | |
| Condenser | Type | Shell and tube/ SS plate type heat exchanger | |||||||||
| Cooling water (m³/h) | 2.1 | 2.9 | 3.6 | 4.2 | 5.7 | 7.1 | 8.3 | 11 | 10.8 | 14.4 | |
| 2.4 | 3.3 | 4.1 | 4.8 | 6.6 | 8.3 | 9.6 | 12.8 | 12.5 | 16.7 | ||
| Inlet/outlet pipe (inch) | 1 1/2″ | 1 1/2″ | 1 1/2″ | 1 1/2″ | 1 1/2″ | 1 1/2″ | 1 1/2″ | 2″ | 2″ | 2″ | |
| Evaporator | Type | SS Tank with cooper coil / Shell and tube/Plate heat exchanger | |||||||||
| Chilled water | 1.63 | 2.25 | 2.8 | 3.27 | 4.5 | 5.6 | 6.53 | 8.63 | 8.43 | 11.35 | |
| 1.96 | 2.7 | 3.36 | 3.92 | 5.4 | 6.73 | 7.84 | 10.36 | 10.1 | 13.62 | ||
| Water tank(L) | 60 | 60 | 60 | 90 | 150 | 200 | 200 | 330 | 330 | 330 | |
| inlet/outlet pipe (inch) | 1″ | 1″ | 1″ | 1″ | 1-1/2″ | 2″ | 2″ | 2″ | 2″ | 2″ | |
| Water pump | Power(kw) | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Max lift(m) | 22 | 22 | 30 | 30 | 25 | 25 | 25 | 28 | 28 | 28 | |
| Max flow (m³) | 5.4 | 5.4 | 8.1 | 8.1 | 8.1 | 13.5 | 13.5 | 25.2 | 25.2 | 25.2 | |
| Safety protection | Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection | ||||||||||
| Dimension | L(mm) | 910 | 910 | 910 | 910 | 1250 | 1250 | 1250 | 1600 | 1600 | 1600 |
| W(mm)） | 480 | 480 | 480 | 480 | 680 | 680 | 680 | 750 | 750 | 750 | |
| H(mm)） | 1000 | 1000 | 1000 | 1000 | 1380 | 1380 | 1380 | 1600 | 1600 | 1600 | |
| Net weight（KG） | 125 | 135 | 160 | 180 | 230 | 260 | 330 | 420 | 420 | 460 | |
| Note: The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Chiller temperature control range 5℃/35℃. We reserve the right to modify the specification without further notice. | |||||||||||
| Food&Beverage Processing Chiller Technical Specifications | |||||||||||
| Model Items | AW-20WF | AW-25WD | AW-25WF | AW-30WD | AW-30WT | AW-40WD | AW-40WF | AW-50WD | AW-50WF | AW-60WD | |
| Cooling capacity | kcal/h 50HZ/60HZ | 56072 | 66048 | 65360 | 83420 | 85140 | 114036 | 113520 | 134504 | 132096 | 169764 |
| 67286 | 79258 | 78432 | 100104 | 102168 | 136843 | 136224 | 161405 | 158515 | 203717 | ||
| KW 50HZ/60HZ | 65.2 | 76.8 | 76 | 97 | 99 | 132.6 | 132 | 156.4 | 153.6 | 197.4 | |
| 76.56 | 92.16 | 91.2 | 116.4 | 118.8 | 159.12 | 158.4 | 187.68 | 184.32 | 236.88 | ||
| Input power | KW | 20.4 | 23.8 | 23 | 30.99 | 30.63 | 41.31 | 39.59 | 52.7 | 48.7 | 59.3 |
| Max Current | A | 48.5 | 61.7 | 60 | 75.2 | 74.8 | 100.3 | 96.6 | 127.9 | 119.7 | 143.9 |
| Power Source | 3PH～380V/415V/480V～50HZ/60HZ(3PH～200V/220V 50HZ/60HZ) | ||||||||||
| Refrigerant | Type | R22/R407C/134a/404A/410A | |||||||||
| Control | Thermostatic expansion valve | ||||||||||
| Compressor | Type | Hermetic scroll ( piston ) | |||||||||
| Power(KW) | 4.55×4 | 10.8×2 | 5.2×4 | 13.62×2 | 8.96×3 | 18.78×2 | 8.96×4 | 23.6×2 | 10.8×4 | 26.9×2 | |
| Condenser | Type | Shell and tube/ SS plate type heat exchanger | |||||||||
| Cooling Water (m³/h) | 14.4 | 17 | 16.7 | 21.4 | 21.7 | 29.3 | 28.9 | 35 | 33.9 | 43.2 | |
| 16.6 | 19.6 | 19.3 | 24.7 | 25.1 | 33.8 | 34.4 | 40.4 | 39.1 | 50 | ||
| inlet/outlet pipe (inch) | 2″ | 2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ | 3″ | 3″ | 3″ | 3″ | 4″ | |
| Evaporator | Type | SS Tank with cooper coil / Shell and tube/Plate heat exchanger | |||||||||
| Chilled Water (m³/h) | 11.21 | 13.21 | 13.1 | 16.68 | 17.02 | 22.8 | 22.7 | 26.9 | 26.41 | 33.95 | |
| 13.45 | 15.85 | 15.68 | 20.02 | 20.43 | 27.36 | 27.24 | 32.27 | 31.7 | 40.73 | ||
| Water Tank (L) | 330 | 350 | 350 | 450 | 450 | 580 | 580 | 620 | 620 | 620 | |
| inlet/outlet pipe (inch) | 2″ | 2″ | 2″ | 2-1/2″ | 2-1/2″ | 3″ | 3″ | 3″ | 3″ | 4″ | |
| Water pump | Power(kw) | 2.2 | 2.2 | 2.2 | 4 | 4 | 4 | 4 | 5.5 | 5.5 | 5.5 |
| Max lift(m) | 28 | 28 | 28 | 30 | 30 | 30 | 30 | 32 | 32 | 32 | |
| Max flow (m³) | 25.2 | 25.2 | 25.2 | 36 | 36 | 36 | 36 | 40 | 40 | 40 | |
| Safety protection | Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection | ||||||||||
| Dimension | L(mm) | 1600 | 1950 | 1950 | 1950 | 1950 | 2000 | 2000 | 2000 | 2000 | 2200 |
| W(mm) | 750 | 850 | 850 | 850 | 850 | 980 | 980 | 980 | 980 | 1100 | |
| H(mm) | 1600 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1850 | |
| Net weight（KG） | 460 | 680 | 680 | 720 | 720 | 870 | 870 | 980 | 980 | 1120 | |
| Note: The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Chiller temperature control range 5℃/35℃. We reserve the right to modify the specification without further notice. | |||||||||||
Why TopChiller is Your Reliable Food&Beverage Processing Chiller Manufacturer and Supplier In China?
Other Product Types Related With Food & Beverage Processing
Food and Beverage Processing Chiller-An Ultimate FAQ Guide by TopChiller.
- What is Food and Beverage Processing Chiller?
- What is the Composition of Food and Beverage Processing Chiller?
- What are Standard Features of Food and Beverage Processing Chiller?
- How Does a Food and Beverage Processing Chiller Work?
- What are the Advantages of Using a Food and Beverage Processing Chiller?
- What are the Applications of Food and Beverage Processing Chiller?
- Which Type of Compressors are Integrated with a Food and Beverage Processing Chiller?
- What is the Function of Microprocessor Controller of Food and Beverage Processing Chiller?
- Which Coolant is Used in Food and Beverage Processing Chiller for Collecting Wasted Heat?
- How is Ice Cooling Process Varies from Chilling Process of a Food and Beverage Processing Chiller?
- What Type of Food Processing Required a Food and Beverage Processing Chiller?
- Which Refrigerant is Used for a Food and Beverage Processing Chiller?
- What are Accessories Options for a Food and Beverage Processing Chiller?
- How Many Types of Food and Beverage Processing Chiller are Available in the Market?
- Which Type of Heat Exchanger is Used for Food and Beverage Processing Chiller?
- How Can you Increase the Redundancy of a Food and Beverage Processing Chiller?
- How is Water System Different from Glycol System of a Food and Beverage Processing Chiller?
- How is Food Texture Maintained by Food and Beverage Processing Chiller in the Food Industry?
- How is Food and Beverage Processing Chiller Helpful in Increasing the Production of Processed Food/Brewery?
- What are the Customization Options for a Food and Beverage Processing Chiller?
- How to Size a Food and Beverage Processing Chiller for your Business?
- How to Increase the Working Efficiency of your Food and Beverage Processing Chiller?
What is Food and Beverage Processing Chiller?
Food and Beverage Processing Chiller is a highly reliable and energy-efficient cooling device that is mediated by heat discharge from processed food.
The heat produced during fermentation, food packaging, or wort production is taken to an average level by it. System heat is transferred to the refrigeration cycle for final discarding. Propylene glycol assists in cooling production.
Food texturing and taste are also being maintained while processing. The chiller unit is easy to install and maintain. It has a long service life and attractive benefits for users.
Food and Beverage Processing Chiller Designed by TopChiller
What is the Composition of Food and Beverage Processing Chiller?
Food and Beverage Processing Chiller ensures the maintenance of texture and taste of processed food by dissipating extra heat. Its main components involved in cooling production are given below:
Compressor
The scroll, screw, or reciprocating compressor is installed depending on the application requirements.
Compressors are mediated to increase the pressure of refrigerant by applying compression force. Scroll and screw compressor is preferably installed for an efficient and sound-free operation.
Condenser
There are two condensers: an air-cooled condenser and a water-cooled condenser. Both are used by considering ambient temperature and the site of installation.
An air-cooled condenser is suitable for areas with fresh air. At the same time, a water-cooled condenser is selected when the ambient temperature would be high and drastic.
Microprocessor Controller
A microprocessor controller regulates the temperature of the Food and Beverage Processing Chiller. Except for, it also maintains the pressure and voltage of a unit.
Heat Exchanger
Shell and tube-type heat exchanger is used for heat exchange between water/glycol coolant and refrigerant.
Waste heat that is absorbed from the processing machine is being exchanged with refrigerant in the tubing of the heat exchanger.
A brazed plate heat exchanger is also fabricated with a unit depending upon the cooling requirements of an application.
Expansion Valves
The pressure of the refrigerant is loosened or relieved by this expansion valve. It is placed between compressor and condenser.
Water Pump and Water Tank
In the case of a chilling water system, the water pump and tank are also integrated with the unit. It ensures the continuous water supply over condenser coils for heat absorption.
Food and Beverage Processing Chiller Water Pump
What are Standard Features of Food and Beverage Processing Chiller?
The standard features of Food and Beverage Processing Chiller that make it function for cooling effect are given below:
- A semi-hermetic scroll compressor or reciprocating compressor is installed, increasing the pressure of the refrigerant.
- Microprocessor controller ensures maintenance of précised temperature both for the unit and a processing machine.
- Air/water-cooled condenser for heat liberation from refrigerant absorbed from processing food units.
- Nonferrous water circuit and food-grade stainless steel material designed compact unit
- Water pump and water tank for providing chilled water supply in case of water chilling system.
- Glycol/water installation as a coolant for collecting heat from the processing unit.
- Shell and tube type evaporator having copper tubing for protection from corrosion and abrasion.
- Moveable side panels that can be removed easily for cleaning.
- Insulated reservoir made of polyurethane having a large capacity.
- The environment-friendly refrigerant runs in a refrigeration cycle for collecting and discarding heat.
- Electronic expansion valves mediate the decrease of pressure from the refrigerant.
Food and Beverage Processing Chiller Semi-Hermetic Scroll Compressor
How Does a Food and Beverage Processing Chiller Work?
A Food and Beverage Processing Chiller is equipped with food-grade components for operating its reliable operation. Its working steps are given below:
Step 1
The scroll or reciprocating compressor is integrated to receive low pressured and evaporated refrigerant. The suction valves of the compressor suck the refrigerant and pull it towards rotating scrolls for compression.
Step 2
The rotating scrolls put compression force and transfer it towards the discharge valve. The evaporated refrigerant leaves the discharge valve under high temperature and pressure and enters into the condenser.
Step 3
Air-cooled condensers are pleated with fresh air supply over condenser coils. When the refrigerant enters in condenser coils, heat is dissipated out either air or water circulating over.
Ultimately the hot air spreads around, while the hot water flows back to the cooling tower for rejecting heat and recirculation.
Step 4
The chilled and condensed refrigerant enters an electronic expansion that expands it to release pressure. The refrigerant with low pressure assures absorption of heat with high capacity.
Step 5
The refrigerant enters in the heat exchanger to recover the cooling of the coolant. The glycol or water is used as a coolant that flows in shell and tube-type evaporator tubing.
The refrigerant absorbs heat from the coolant and gets converted again in a gaseous phase.
Step 6
While the chilled coolant leaves the evaporator and enters in processing unit, it flows in the cooling jacket of wort to collect heat.
When the temperature of the wort or fermentation process comes to normal, the coolant flows back to the heat exchanger.
Step 7
Coolant transfers heat either to heat exchanger/ refrigeration cycle. The whole cycle is repeated again for process continuation under the cooling effect.
What are the Advantages of Using a Food and Beverage Processing Chiller?
The advantages of using a Food and Beverage Processing Chiller are given below:
Customized Sizing
It is available with an assorted number of customized options. You can get a chiller of any size and design you may require.
Redundancy
Integration of dual circulation system as well as auto change over increase the redundancy of the unit for durable operation.
Durability
Stainless steel material designing and redundancy options make it more durable to use.
Retention of Food Texture
Temperature maintenance and killing of microbes by chilling effect, food texture, and taste of food is being maintained.
High Productivity
By temperature regulation required for fermentation, the whole substrate is fermented with no by-products formulation. Hence productivity increases in this way.
What are the Applications of Food and Beverage Processing Chiller?
There is a large number of applications for Food and Beverage Processing chillers as given below:
- Beverage Industry
- Fermentation
- Wort Cooling
- Yogurt Processing
- Processed Meat
- Wineries
- Food Packaging
- Bakeries
- Ice Cream Production
- Cold Table
- Food Preservation
Applications of Food and Beverage Processing Chiller
Which Type of Compressors are Integrated with a Food and Beverage Processing Chiller?
Compressors that can be integrated with Food and Beverage Processing Chiller are given below:
Scroll Compressor
A scroll compressor of 2 to 34 HP can be integrated with both air and the water-cooled unit. The scroll compressor is efficient in performance.
The two rotating scrolls of the compressor deals with the coming refrigerant and increase its pressure.
Reciprocating Compressor
It can also be used for both air and water-cooled units. It is a piston-driven compressor under the assistance of a crankcase shaft.
Its pistons are involved in increasing the pressure of the refrigerant.
Screw Compressor
It consists of two screws. One is a fixed screw, while the other screw rotates over the immovable screw. It is available from 38 to 214 HP.
Screw rotors put compression force over the refrigerant.
What is the Function of Microprocessor Controller of Food and Beverage Processing Chiller?
Microprocessor Controller
A microprocessor controller is a temperature regulating unit fabricated with a touch screen and other safety devices.
However, different factors denote the quality of beer and processed food. But the flavor is the main criterion of good quality beer.
The temperature required for proper fermentation should be 68-72℉. Temperature above this cause incomplete fermentation and produce some by-products affecting beer taste.
To amend this problem microprocessor controller is installed with Food and Beverage Processing Chiller.
The microprocessor controller also adjusts the critical set points of different control options.
Food and Beverage Processing Chiller Microprocessor Controller
Which Coolant is Used in Food and Beverage Processing Chiller for Collecting Wasted Heat?
There are two types of coolant that are used for Food and Beverage Processing Chiller as given below:
Propylene Glycol
Propylene glycol is used for food processing applications dealing with low ambient temperature.
It is a reliable and protective coolant for food processing. It circulates over the respective system and absorbs heat when it is installed.
Glycol has a low freezing point as compared to the water. It is capable of absorbing a large amount of heat.
It is mainly installed to deal with yogurt processing, ice-cream production, cold table, etc. Propylene glycol can also be used as a mixture with water.
Water
When the required application is dealing with average temperature, the water is used as a coolant to discharge the system’s heat.
All of the excess heat produced during food processing is being dissipated by chilled water circulation.
Heat discarding assists the maintenance of texture as well as the taste of food.
How is Ice Cooling Process Varies from Chilling Process of a Food and Beverage Processing Chiller?
Ice Cooling Process
In the ice cooling process, the ice is required in large amounts for producing a chilling effect. Ice is used to dissipate heat from processing machines.
A substantial investment is required for purchasing ice that meets the heating load.
The icing system may also cause hindrance in fluent heat discharging. Standardized temperature adjustment is not possible by an ice cooling system.
Chiller Cooling Process
The chilling effect produced by Food and Beverage Processing Chiller is durable and reliable as compared to ice-cooling.
The water recirculation system of the chiller saves you from significant investment. The continuous flowing refrigeration cycle assures the constant heat is discharging from the system.
Microprocessor temperature controller assists the standardized temperature regulation of the unit for better operation.
What Type of Food Processing Required a Food and Beverage Processing Chiller?
The Food and Beverage Processing Chiller for different food processing is given below:
Grapes Cooling
When the grapes are used for wine production, they are crushed first. After crushing, the grapes juice is cooled by passing through the heat exchanger. After heat discharging, the juice is transferred to fruit totes.
Room Cooling
The storage rooms are cooled by coolant circulation that will dissipate system heat for storage and food preservation.
Juice Cooling
The chilled glycol is provided to flow in a cooling jacket to normalize the fermented juice temperature.
Beverages
The beverage process completes in multiple steps, dissipating heat. All of its excess heat is rejected for regular operation by coolant.
Wort Cooling
Wort is an actual liquor solution prepared from different sugary food or grains to ferment. Food and Beverage Processing Chiller discharges the heat from wort.
Which Refrigerant is Used for a Food and Beverage Processing Chiller?
A refrigerant is a chemical compound installed in the chiller to absorb heat from the system and reject it in the outside environment.
The refrigerant circulates in the refrigeration cycle for leaving system heat.
Environment-friendly refrigerant is installed for Food and Beverage Processing Chiller as r410A, r404A, and r407C.
It works to produce the chilling effect without interrupting the ozone layer. These are called refrigerants with zero reduction potential.
Environment-Friendly Refrigerant for Food and Beverage Processing Chiller
What are Accessories Options for a Food and Beverage Processing Chiller?
Different accessories options can be integrated with Food and Beverage Processing Chiller for various operational purposes as given below:
- Integration of hot gas bypass valve for regulating refrigerant temperature precisely
- Water supply pump
- Remote control panel
- Fused disconnect
- PLC control unit for monitoring overall operation
- Phase monitor
- The evaporator circuiting suitable for an open circuit system
- Enlarged condenser with high capacity and efficient running
- Circuit breaker to control the electrical components
- Digital flowmeter

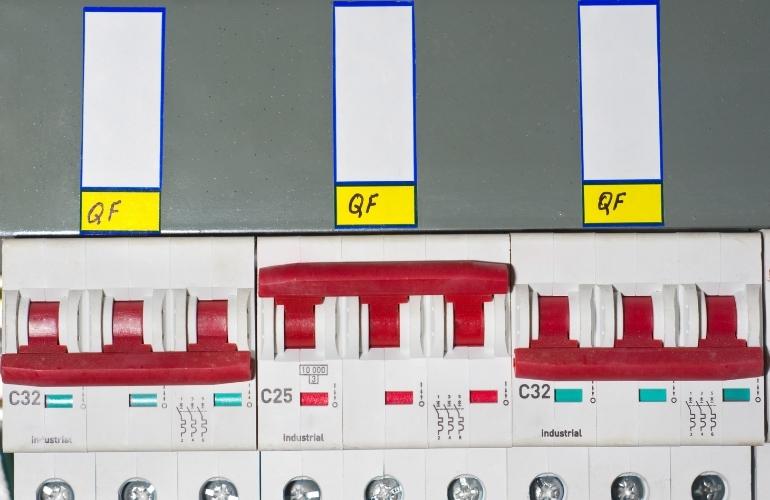

Food and Beverage Processing Chiller Circuit Breakers
How Many Types of Food and Beverage Processing Chiller are Available in the Market?
There are different types of Food and Beverage Processing Chiller are available in the market as given below:
Based on Type of Condenser
If an air-cooled condenser is integrated with Food and Beverage Processing Chiller, it would be called an air-cooled chiller.
The air cooled-condenser consists of copper coils and fans for the air supply. The source of fresh air is the outside environment.
It is also preferably installed for low ambient temperature and sarcastic water areas. It efficiently discards the heat by continuous fresh air supply.
This chilling system for food processing consists of a water-cooled condenser. The chilled water is supplied to circulate over condenser coils for heat discharging from the water tank.
Based on Type of Coolant
Glycol Chiller
If glycol is installed for direct cooling of the processing unit, it would be called a chilling glycol system. The glycol is an anti-freezing agent. It is widely used as a coolant.
Water Chiller
Water is used as a coolant to collect waste heat produced during food/beverage processing.
It is favorable to use if the ambient temperature is moderate, causing no freezing effect.
The water absorbs heat as glycol. After collecting heat from the system, the water coolant recovers its chilling effect in the heat exchanger.
Based on Type of Compressor
Different types of compressors are available. These are integrated with Food and Beverage Processing Chiller as per application requirements as:
Water Cooled Food and Beverage Processing Chiller
Which Type of Heat Exchanger is Used for Food and Beverage Processing Chiller?
Generally, there are two primary heat exchangers: brazed plate evaporator and shell and tube type evaporator.
But the shell and tube type evaporator is most commonly used for Food and Beverage Processing Chiller.
Shell and Tube Type Heat Exchanger
It is the fundamental component of the refrigeration cycle configuring heat exchange between two fluids. It consists of convoluted tubules present in a stainless steel shell.
One fluid runs in tubes while the other fluid flows in the heat exchanger shell. When both fluids run counter-currently, the heat is transferred from coolant to refrigerant.
The coolant gets cooled, and the refrigerant changes its liquid phase into the gaseous phase and leaves the heat exchanger to enter the compressor.
Food and Beverage Processing Chiller Shell and Tube Type Heat Exchanger
How Can you Increase the Redundancy of a Food and Beverage Processing Chiller?
The redundancy of the Food and Beverage Processing Chiller can be increased for the durability of operation as given below:
Dual/Multiple Circuit

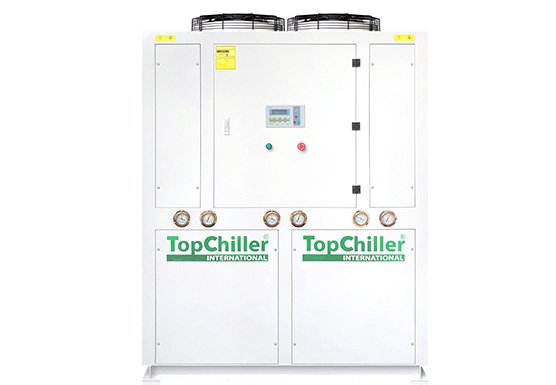

To increase working efficiency, the dual circulation is integrated into the unit. Both refrigeration cycles are fabricated with separate compressors.
Both cycles run at a time. When there is any damage or fault in one circulation cycle, the other circuit will operate smoothly.
Both work independently, causing fluency in operation instead of any interruption. Hence in this way, the redundancy increase.
Electrical Isolation
Electrical connections are kept separately so that they may not cause a hindrance in the overall operation.
Any error in a separate connection can be sorted out quickly without affecting unit operation. So redundancy also increases in this way.
Auto-Changeover Pumps
The pumps integrated with auto-changeover also increase the redundancy. The auto change over controls the standard flow rate.
If there were any changes in flow rate, it would be altered or changed with the set point.
How is Water System Different from Glycol System of a Food and Beverage Processing Chiller?
The water chilling system is different from the glycol chilling system of Food and Beverage Processing Chiller are given below:
Glycol Chilling System
When glycol is installed as a coolant for producing a chilling effect in the respective system, it is called the glycol chilling system.
Propylene glycol is preferably used to deal with food processing. Propylene glycol is used separately or by mixing with water.
It collects all of the extra heat produced in the fermentation process and discards it in the heat exchanger. The heat exchanger has refrigerant circulation for absorbing heat from the coolant.
Glycol chilling system also protects the tubing of the heat exchanger from rusting and freezing effect. It is an anti-freezing agent suitable for a cold environment.
Water Chilling System
When water is used to collect heat from the system instead of glycol, the unit will be called a water chilling system.
Chilled water enters food processing machines and circulates over vessels for heat discharge. Water is used mainly for applications with low or moderate temperatures.
When the system’s temperature reaches the average set point, the water moves back towards the heat exchanger to discard heat.
How is Food Texture Maintained by Food and Beverage Processing Chiller in the Food Industry?
Food and Brewery Processing Chiller maintains the texture and taste of the beverage and preserved food.
The continuous chilling effect is provided to prevent the food from rotten. Chilled propylene glycol circulation from a heat exchanger assures temperature stability in stored rooms.
Heat exchangers and solenoid valves regulate the heating level at an average set point.
The microbes that cause the rotten of food are being destroyed. In this way, the taste and texture of food are retained.
How is Food and Beverage Processing Chiller Helpful in Increasing the Production of Processed Food/Brewery?
Increase in Production of Food/Brewery
When food is processed or packaged in industry, the heat is produced in this process. For wine production, firstly wort is produced. While producing wort, the fruits or grain is crushed in a machine.
The heated wort is being cooled before transferring to the fermenter so that heat may not denature the fermenting microbes as yeast.
In this way, the fermenting microbes work at peak values ensuring fermentation of the whole substrate into a specified product. In this way, the production rate is increased of food/brewery.
What are the Customization Options for a Food and Beverage Processing Chiller?
The Food and Beverage Processing Chiller can be customized by different available options as given below:
Options for High Efficiency
- Variable frequency drives integrated with pump for different flow rates
- Options for heat reclaim
- Integration of EC fan motors with condenser for energy saved operation
- Floating head pressure if the ambient temperature is below 95⁰F
Control Options
- Touchscreen with automatic or on-board controlling options
- Central control regulating multiple units
- Options for custom programing
- Tight processing control by integration of MCS microcontroller
- Texts alert option when emergency alarms will ring
Water Options for Low Ambient Temperature
- Fabricating freeze stat control unit
- Installation of glycol loops under narrow ranges of temperature
- VPD pumps giving temperature update
Design Options for Low Temperature
- Sizing of the condenser as well as evaporator as per application requirement
- Compressor protection from oil leakage under oil management system
- Liquid injection options
- Compressor cooling by attached fans
- Expansion valves, especially electrical valves for control of superheating
Additional Options for Customization
- Circuit breakers for the protection of electric explosion
- Digital flowmeter
- Phase monitoring option
Customized Food and Beverage Processing Chiller
How to Size a Food and Beverage Processing Chiller for your Business?
A Food and Beverage Processing Chiller can be sized for different applications by calculating the heating load as:
By Calculating the Temperature Difference of Water.
Temperature differential (T°F) = temperature of incoming water T°F- chilled water temperature required for application
Heating load in BTU/hr = water flow rate in gallons/hr x 8.33 x change in temperature (T°F)
The required cooling capacity of the chiller in tons= BTU/hr. ÷ 12,000
For Ideal/Standard Chiller Sizing
Ideal cooling capacity in tons = Tons x 1.2
How to Increase the Working Efficiency of your Food and Beverage Processing Chiller?
The working efficiency of the Food and Beverage Processing Chiller can be increased by considering some points as given below:
Daily Cleaning
Dust accumulation and rusting can cause a decrease in working efficiency. By assuring the cleaning of the whole unit before starting operation, the working efficiency can be increased.
Inspection of Chiller Components
Check out all of the components before operation and bring their performance to the record. If you find any component decreasing its working efficiency, amend it. Repair the part or replace it with the new one.
Charging of Refrigerant
Make sure that the refrigerant should be charged as per unit requirements. If there is any fluctuation, recharge the refrigerant for fluent heat discharging.
Prevention from Oil Leakage
Check out all piping and oil reservoirs, so that refrigerant may not be mixed with oil. By repairing leaks, the compressor will also work efficiently.
Food and Beverage Processing Chiller Cleaning
