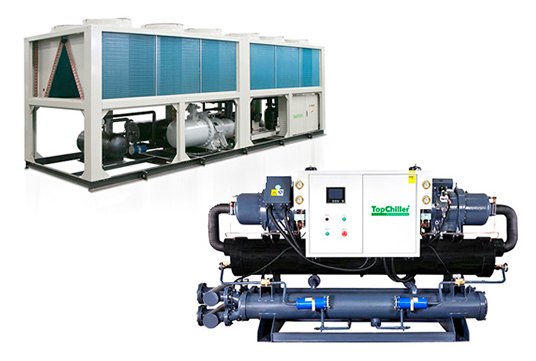

TopChiller can design and manufacture all types of central chillers for you
- Cooling capacity ranges from 50 Ton to 200 Ton
- Temperature control ranges from 20°F to 70°F
- Dual scroll /single screw branded compressor
- Factory mounted, Freon charged coolant
- Single point electrical connection installing
- Energy-efficient brazed plate heat exchanger
- Easy installation both indoor and outdoor
- Motor pumps and long sized pipelines
Your Premier Central Chiller Manufacturer and Supplier in China

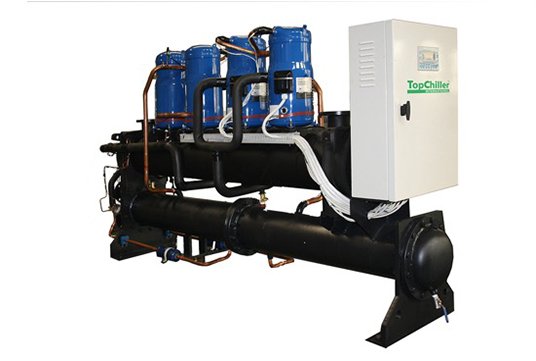

Central Chiller is a specially designed cooling machine that executes chilling effect to different units of the whole plant by using chilled water circulation and pipelines for providing cooling.
TopChiller is a trustworthy company of China that is providing the best user guides and supporting the industrial world by manufacturing energy-efficient and definitive Central Chiller and successfully supplying all over the world.
Since 1999, TopChiller is fulfilling the needs of clients by taking a detailed overview of your application requirements and customizing a Central Chiller accordingly with a superb experience and famed credentials all over the world.
Dual scroll compressor, brazed plate heat exchanger, dual refrigeration circulation, air/water-cooled condenser, suction bearings, water tank, motor pumps and pipelines, solenoid valve, protecting devices, and single-point power supply are the basic components of Central Chiller.
Central Chiller has numerous benefits for different industrial processing as given below:
- TopChiller brand Central Chiller is famous among different production plant processing. By providing chilling effect at a time to all industrial machinery configured by the use of different size pipelines for chilled water supply with high-pressure water pumps.
- Central Chiller applies high compression pressure on refrigerant for persistent and streamlined flow configured by use of dual scroll compressor and dual nature circulation making instant cooling independently.
- TopChiller designed Central Chiller provides versatility in operation for different applications featured by air-cooled or water-cooled installation as well as combining of more than one chiller unit with a single-point power supply to centralize cooling for all machines.
- Central Chiller is easy to install at any place irrespective of its weight configured by portable design with wheeling casters as well as stationery design for larger applications.
- TopChiller designed Central Chiller ensures the prediction of any disturbance in operation by the installation of a monitoring app that indicates system failure.
Central Chiller is being used in many applications for its precision and efficiency in operation as:
Chemical industry, HVAC system, pharmaceutical industry, plastic industry, medical industry, laboratory, buildings, die casting, packing and printing, food industry, chilled water supply plants, and power project, etc.
Are you searching over to buy a precise and multifunctional Central Chiller that will provide the cooling effect to different components of your application?
Do you need a reliable Central Chiller manufacturing company in China that will make collaborate and provide technical suggestions for your business establishment?
No need to go way around. You have caught the best option. TopChiller is a leading company that deals equally with companies, domestic customers, and trusted clients.
Commence a talk with TopChiller sales and expert engineers, discuss all requirements demanding your application. Our team will fully support you to purchase the best Central Chiller at a smart price.
- Data Sheet
- Image Gallery

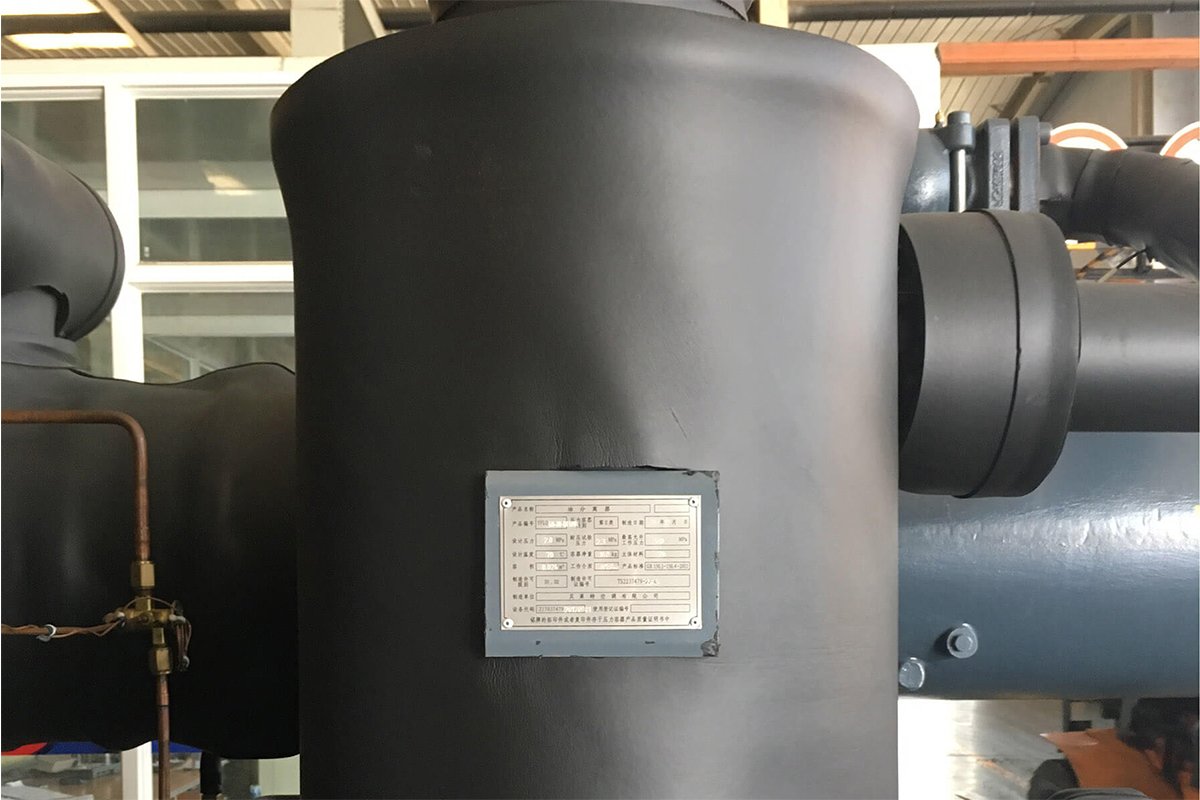

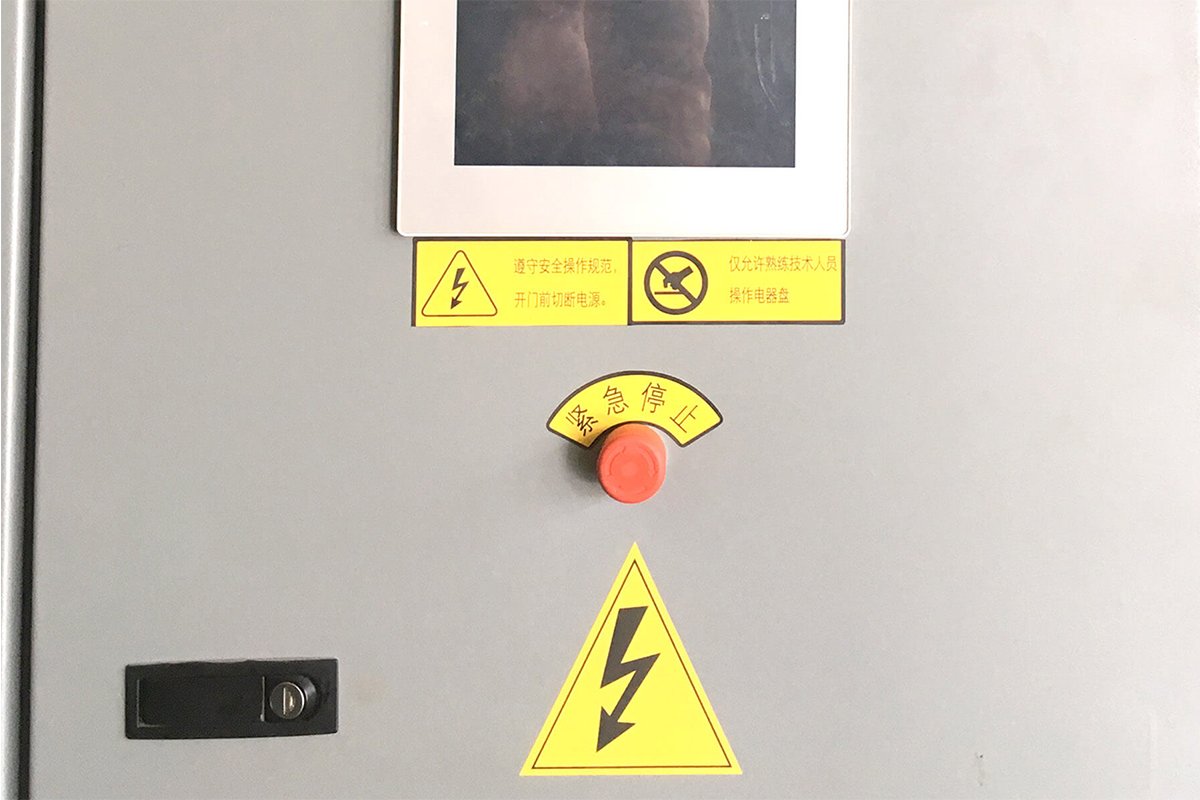

- Main Parts
- Video
Central Chiller Technical Specifications | Central Chiller Technical Specifications | |||||||||||||||||||||||
Model Items | TPW-100WSH | TPW-135WSH | TPW-175WSH | TPW-190WSH | TPW-230WSH | TPW-255WSH | TPW-300WSH | TPW-350WSH | TPW-375WSH | TPW-415WSH | Model Items | TPW-470WSH | TPW-500WSH | TPW-560WSH | TPW-590WSH | TPW-610WSH | TPW-720WSH | TPW-790WSH | TPW-840WSH | TPW-940WSH | ||||
Cooling Capacity | kcal/h | 86000 | 116100 | 150500 | 163400 | 197800 | 219300 | 258000 | 301000 | 322500 | 356900 | Cooling Capacity | kcal/h | 425700 | 447200 | 490200 | 533200 | 550400 | 645000 | 705200 | 756800 | 851400 | ||
KW | 100 | 135 | 175 | 190 | 230 | 255 | 300 | 350 | 375 | 415 | KW | 495 | 520 | 570 | 620 | 640 | 750 | 820 | 880 | 990 | ||||
Input Power | KW | 22 | 30 | 37 | 42 | 51 | 56 | 65 | 75 | 80 | 90 | Input Power | KW | 103 | 109 | 118 | 127 | 131 | 151 | 167 | 177 | 199 | ||
Max Current | A | 40 | 53 | 67 | 73 | 89 | 97 | 109 | 126 | 137 | 153 | Max Current | A | 177 | 187 | 203 | 218 | 225 | 260 | 288 | 306 | 345 | ||
Power Source | 3PH~380V/415V/480V~50HZ/60HZ(3PH~200V/220V 50HZ/60HZ) | Power Source | 3PH~380V/415V/480V~50HZ/60HZ(3PH~200V/220V 50HZ/60HZ) | |||||||||||||||||||||

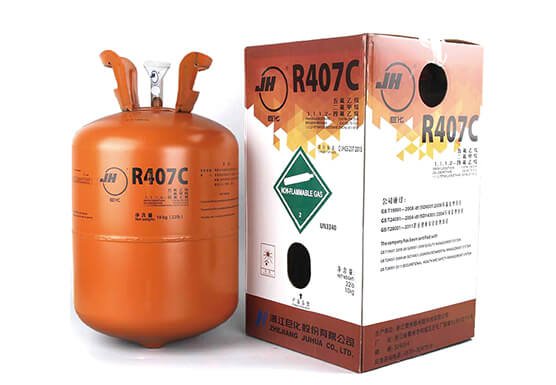

Refrigerant | Type | R22(R134a/R407c/R404A) | Refrigerant | Type | R22(R134a/R407c/R404A) | |||||||||||||||||||
Charge | kg | 17 | 22 | 27 | 33 | 38 | 43 | 50 | 55 | 60 | 66 | Charge | kg | 82 | 88 | 94 | 100 | 110 | 121 | 132 | 143 | 165 | ||

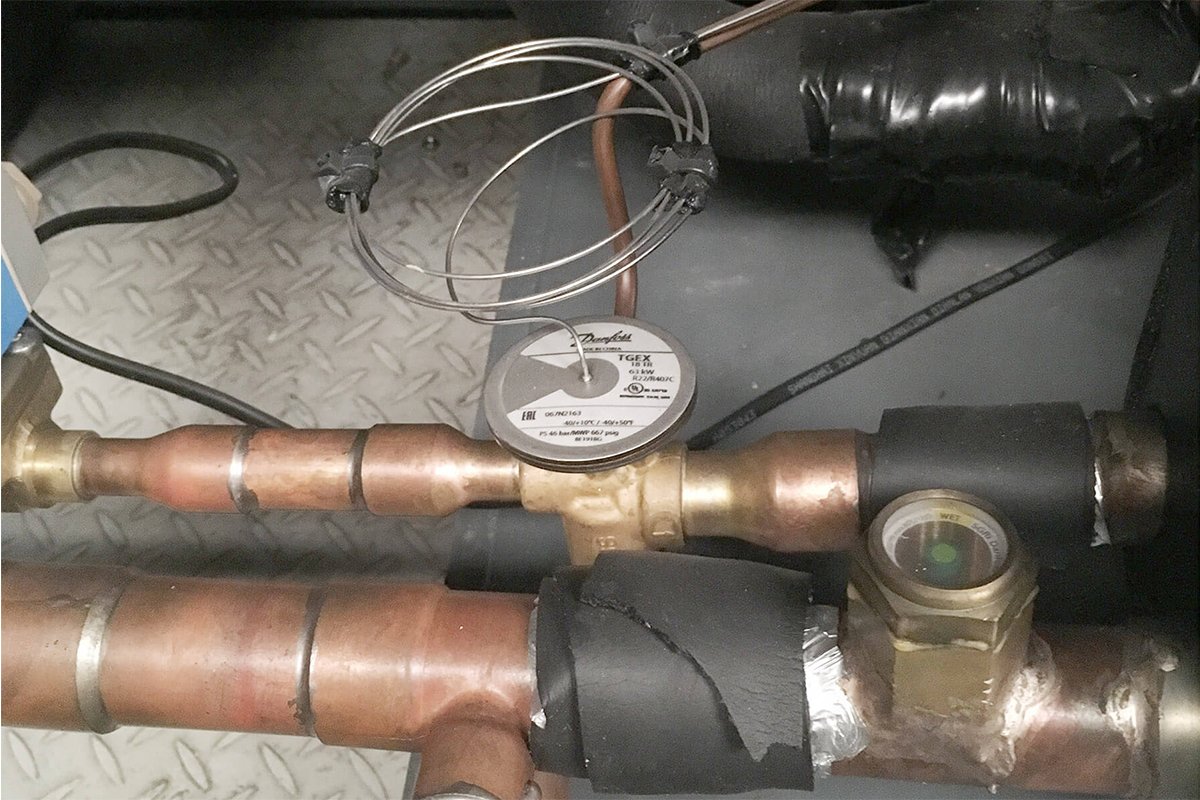

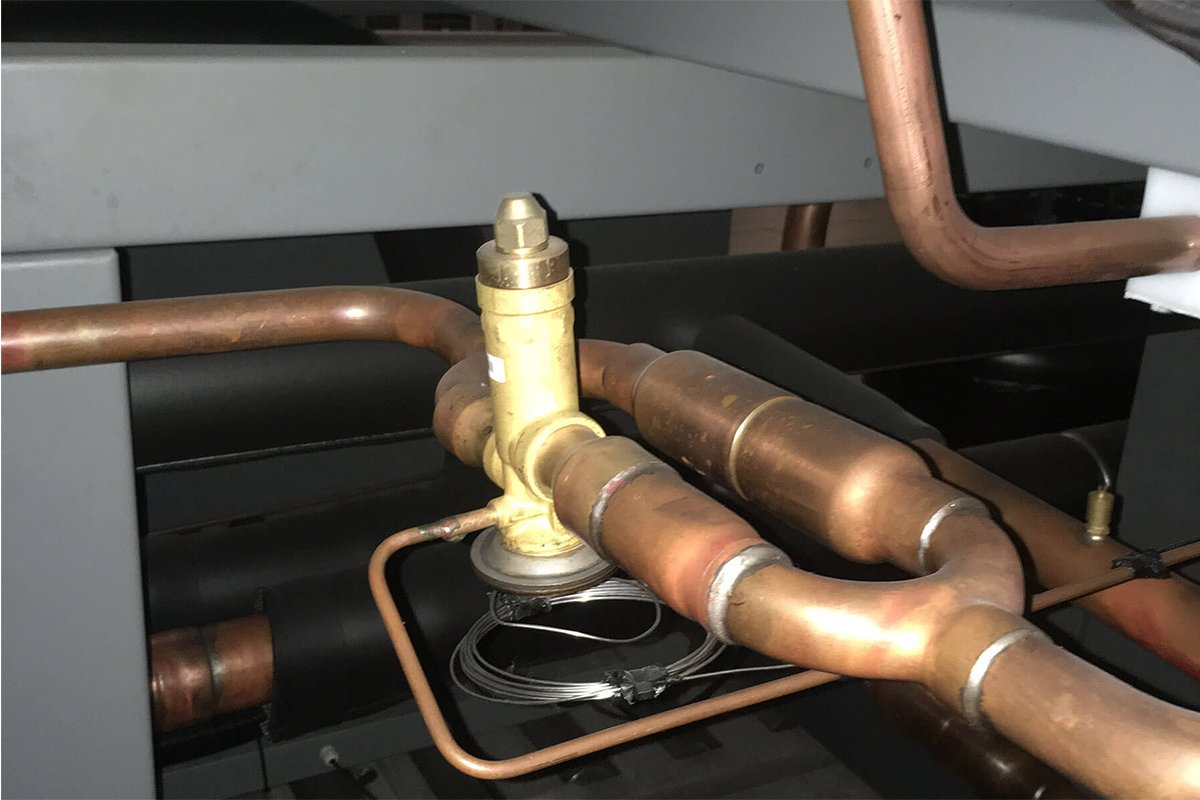

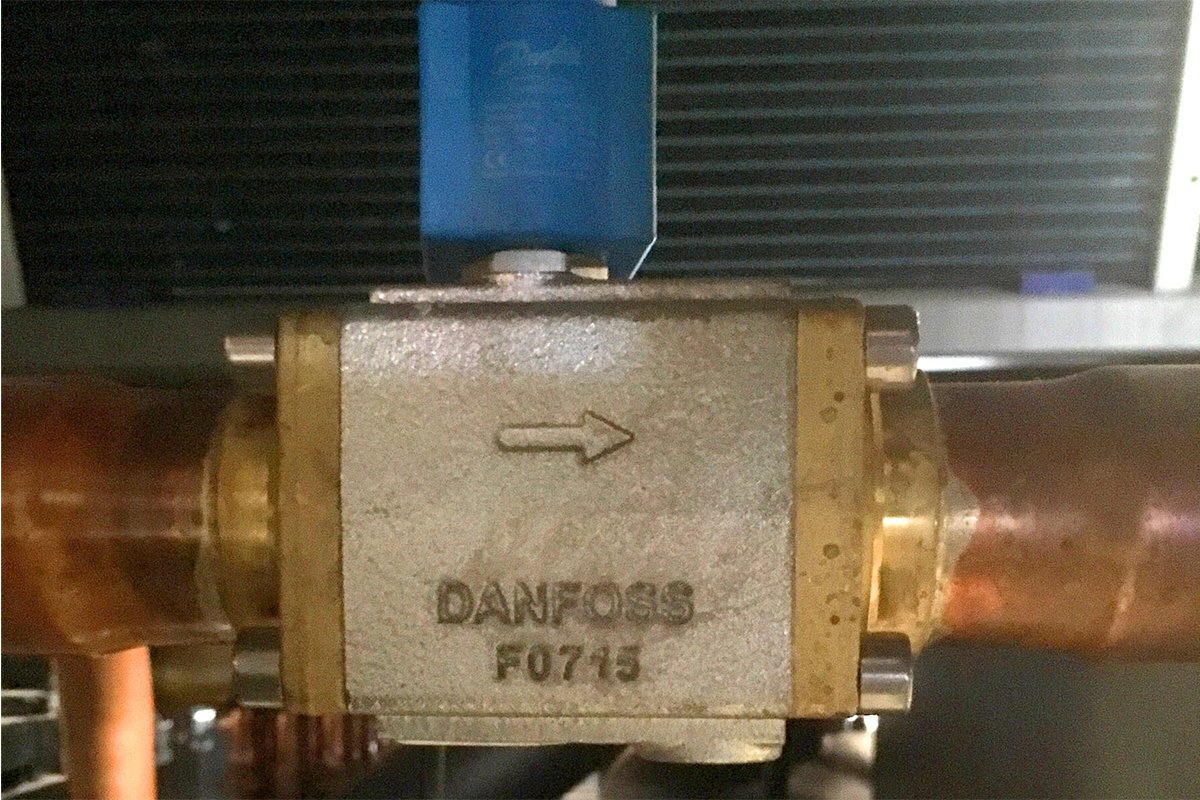

Control | Thermostatic expansion valve | Control | Thermostatic Expansion Valve | |||||||||||||||||||||

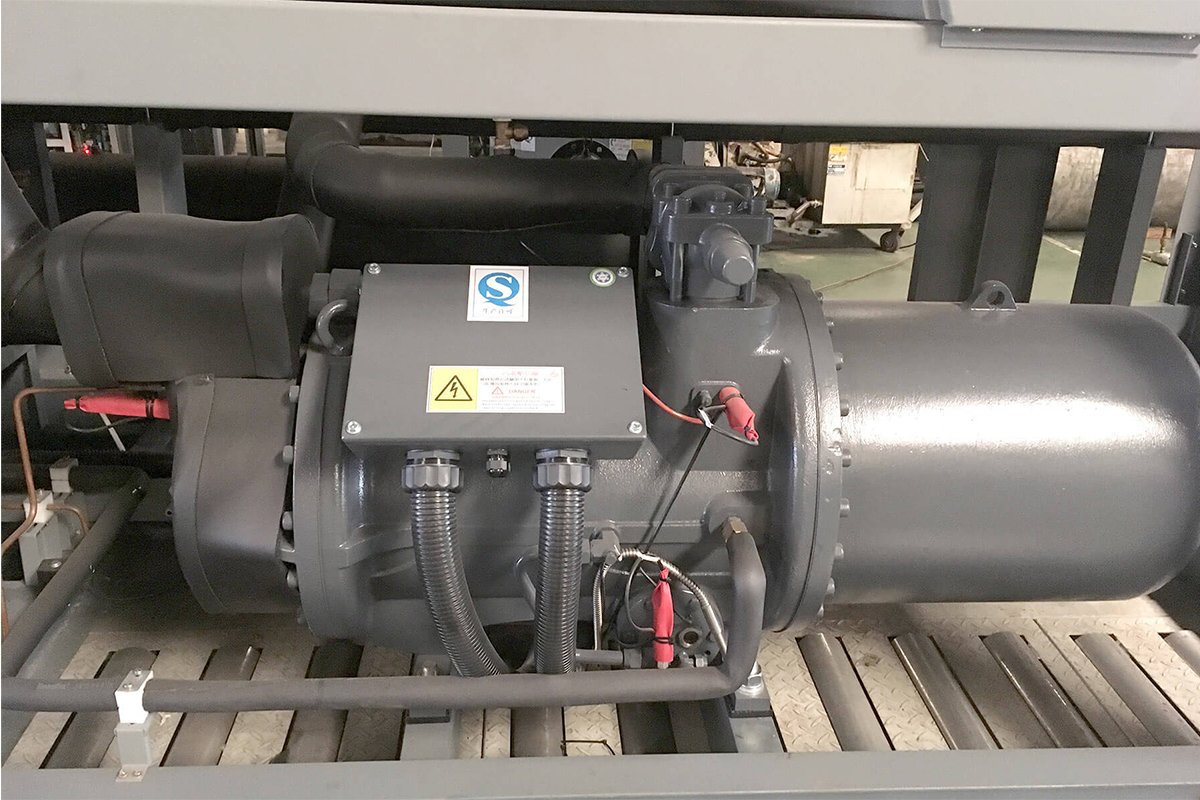

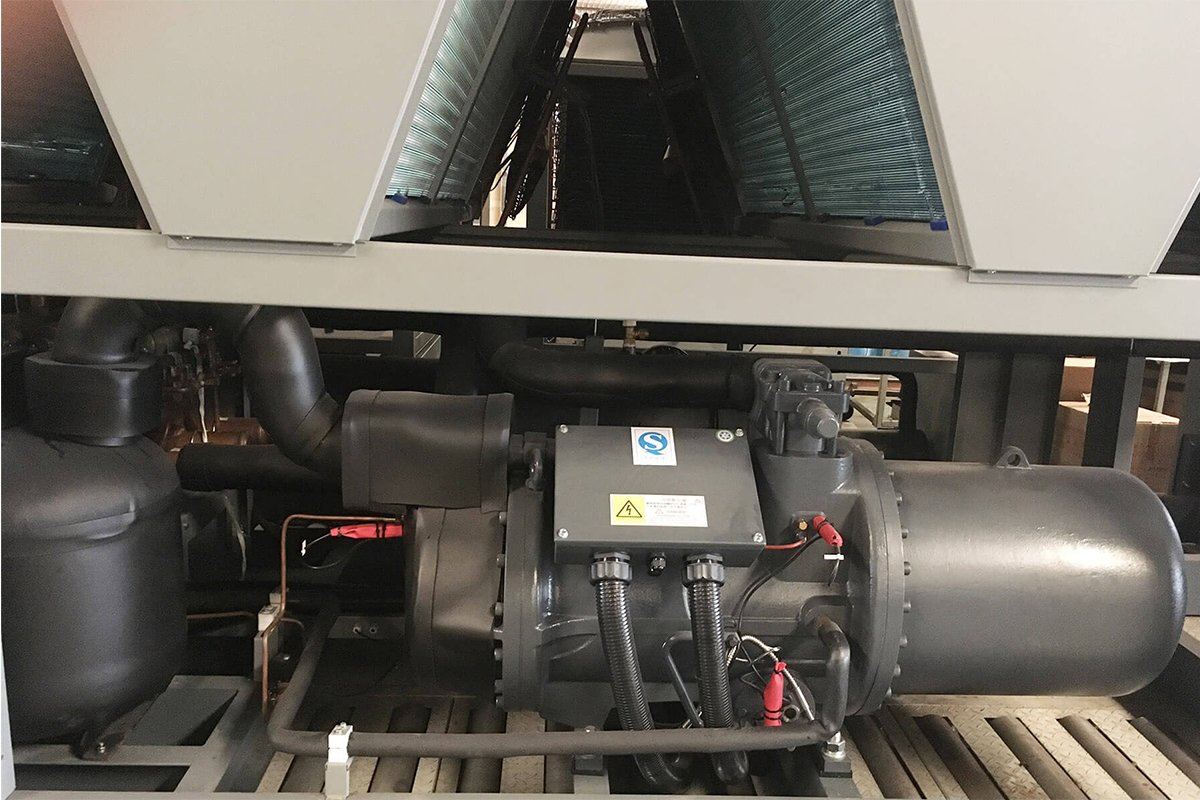

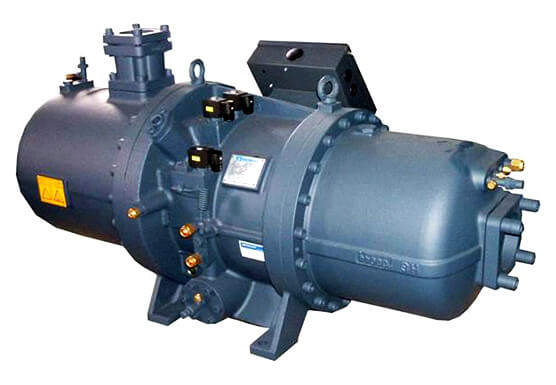

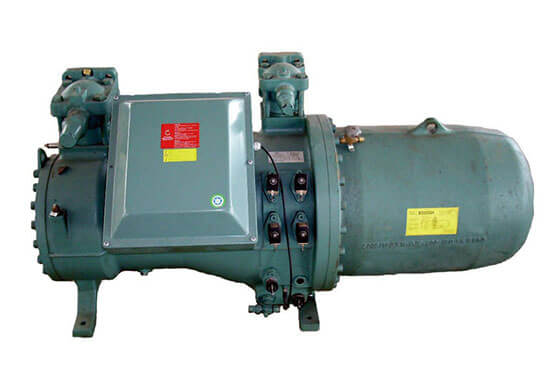

Compressor | Type | Semi-hermetic screw | Compressor | Type | Semi-hermetic Screw | |||||||||||||||||||
Power | KW | 22 | 30 | 37 | 42 | 51 | 56 | 65 | 75 | 80 | 90 | Power | KW | 103 | 109 | 118 | 127 | 131 | 151 | 167 | 177 | 199 | ||
Start mode | Y-△ | Start Mode | Y-△ | |||||||||||||||||||||
Capacity control | % | 0-33-66-100 | 0-25-50-75-100 | Capacity Control | % | 0-25-50-75-100 | ||||||||||||||||||

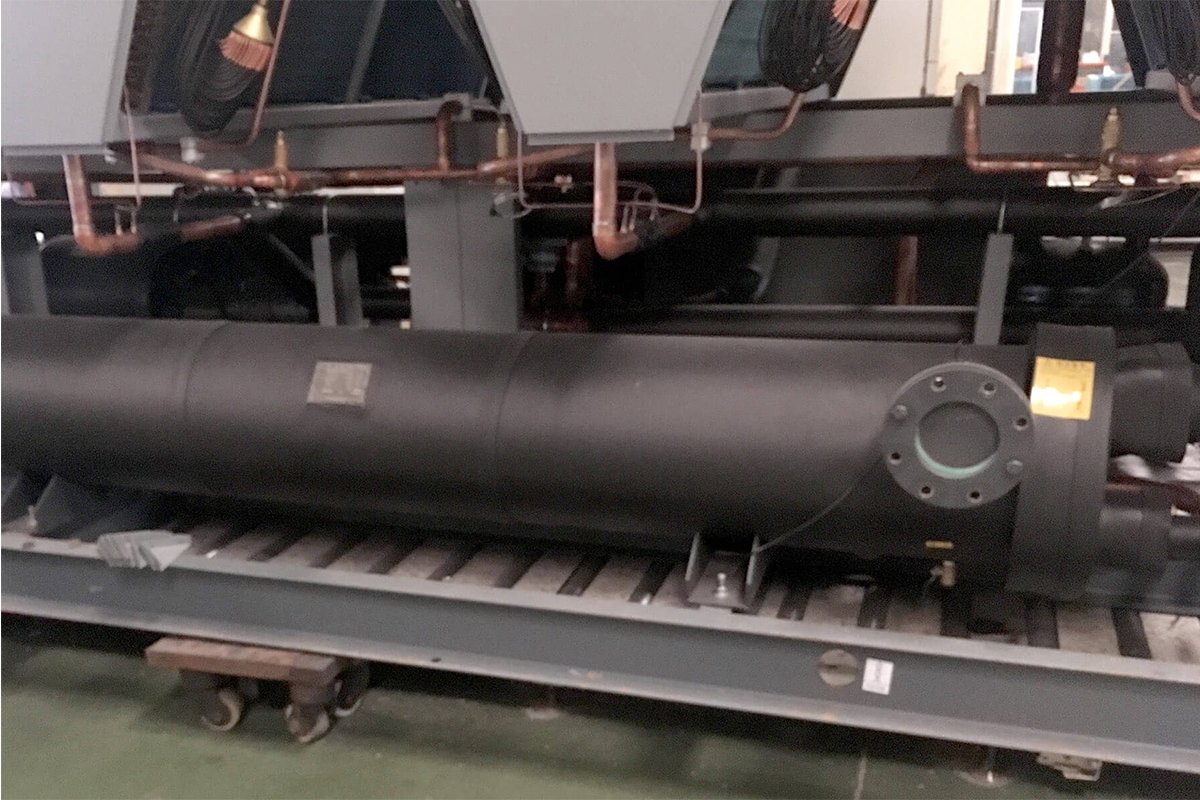

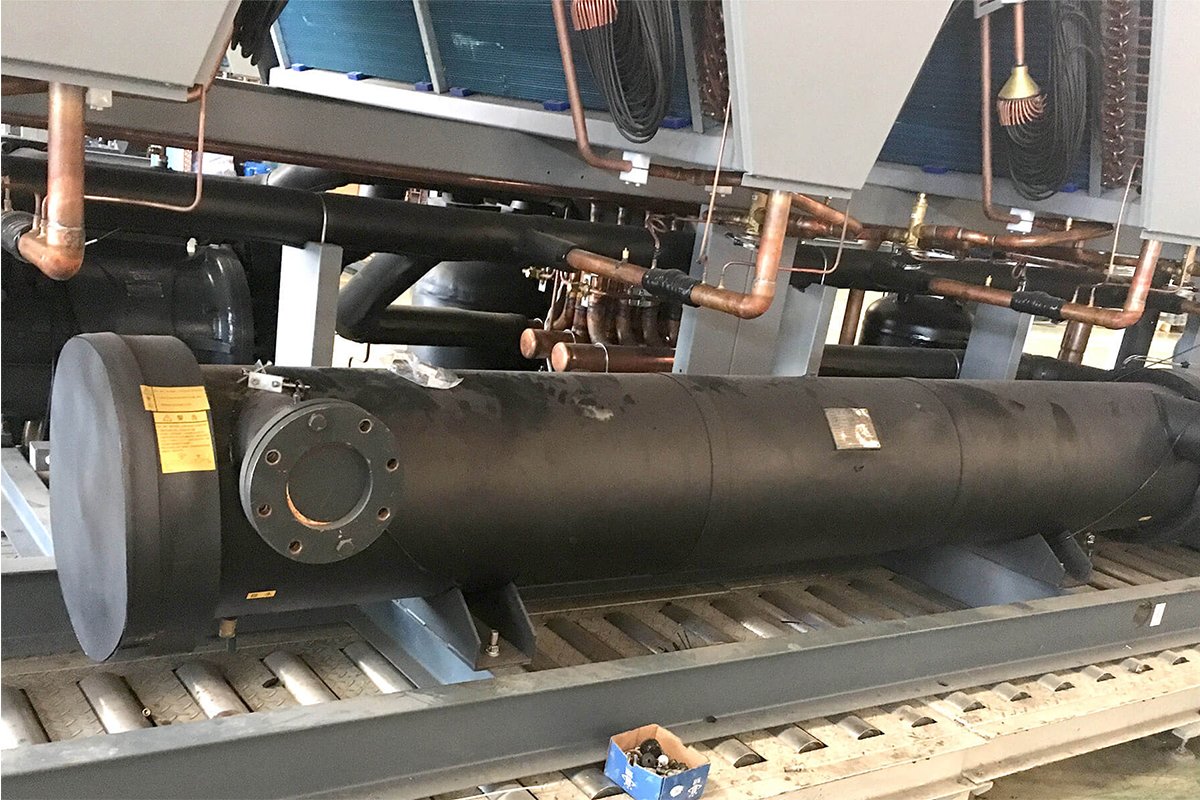

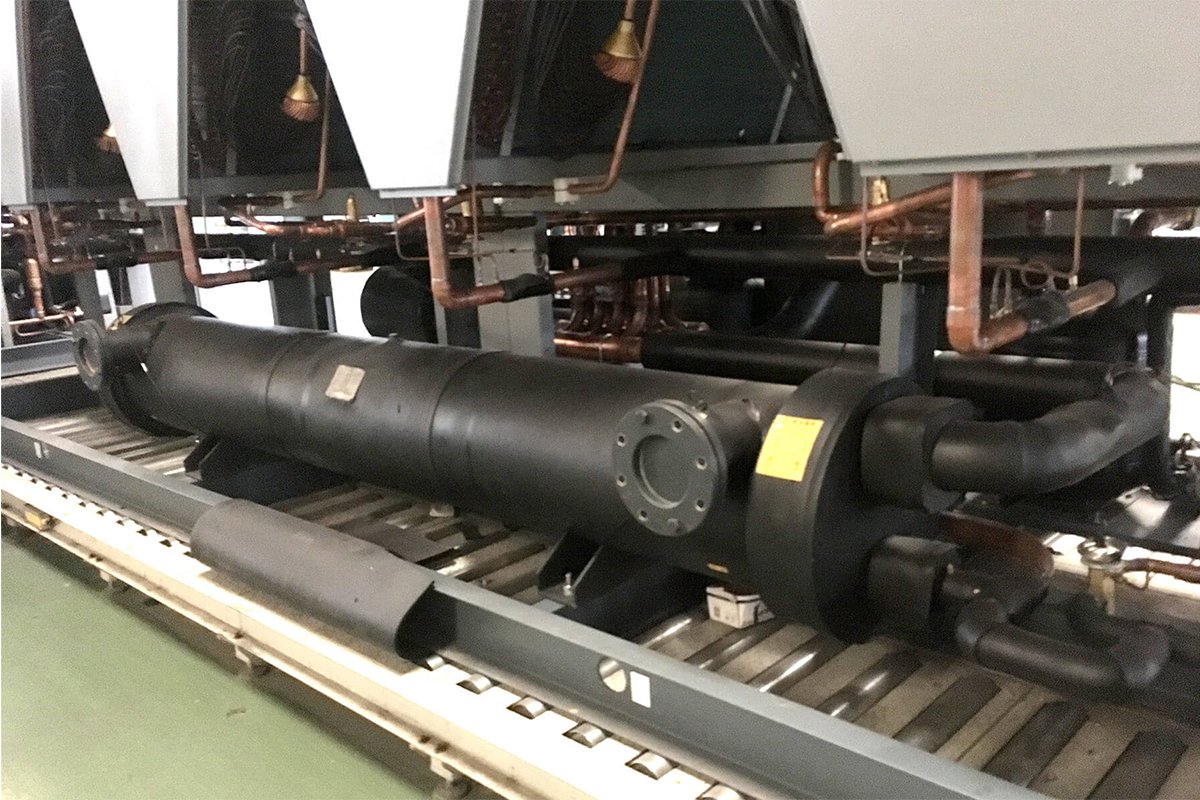

Evaporator | Type | Shell and tube (SS plate heat exchanger) | Evaporator | Type | Shell and tube (SS plate heat exchanger) | |||||||||||||||||||
Chilled water | m³/h | 17.2 | 23.2 | 30 | 32.7 | 40 | 43.9 | 51.6 | 60.2 | 64.5 | 71.4 | Chilled Water | m3/h | 85.1 | 89.4 | 98 | 106.6 | 110 | 129 | 141 | 151.3 | 170.4 | ||
Water pressure | KPa | 35 | 35 | 35 | 38 | 40 | 42 | 42 | 45 | 45 | 43 | Water Pressure | KPa | 40 | 41 | 43 | 45 | 45 | 45 | 45 | 43 | 45 | ||
Pipe connection | Inch | 3″ | 3″ | 3″ | 3″ | 4″ | 4″ | 4″ | 4″ | 4″ | 4″ | Pipe Connection | Inch | 5″ | 5″ | 5″ | 6″ | 6″ | 8″ | 8″ | 10″ | 10″ | ||

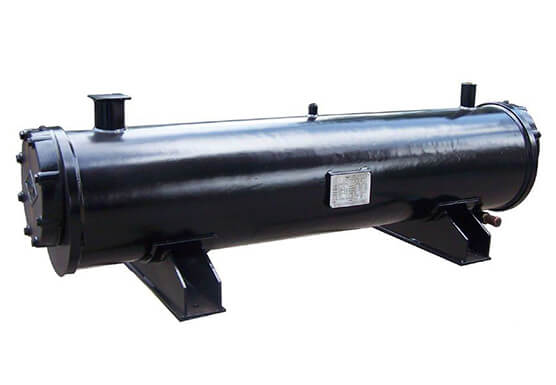

Condenser | Type | Water cooled type shell and tube | Condenser | Type | water cooled type Shell and tube | |||||||||||||||||||
Cooling water | m³/h | 21 | 28.4 | 36.6 | 40 | 48.3 | 53.5 | 62.8 | 73 | 78.2 | 86.8 | Cooling Water | m3/h | 102.8 | 108.2 | 118.3 | 128.5 | 132.6 | 155 | 169.7 | 181.8 | 204.5 | ||
Water pressure | KPa | 42 | 42 | 42 | 43 | 42 | 43 | 43 | 45 | 45 | 45 | Water Pressure | KPa | 48 | 45 | 46 | 48 | 46 | 48 | 48 | 45 | 47 | ||
Pipe connection | Inch | 3″ | 3″ | 3″ | 4″ | 4″ | 4″ | 4″ | 4″ | 5″ | 5″ | Pipe Connection | Inch | 5″ | 5″ | 6″ | 6″ | 6″ | 8″ | 8″ | 10″ | 10″ | ||

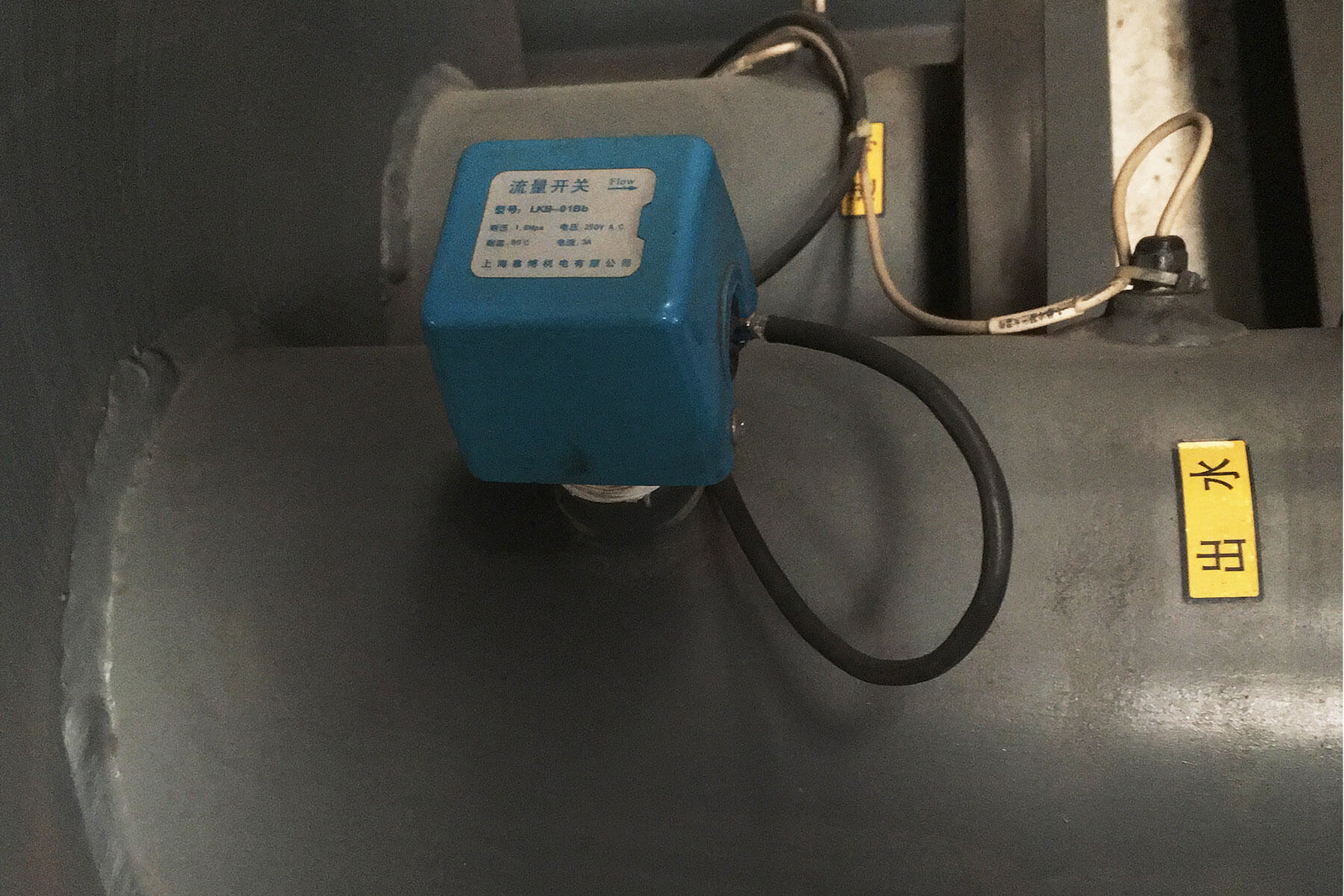

Safety protection devices | Inner thermostat for compressor motor, unit overload relay, high and low pressure switch, freeze protection thermostat, reverse phase protection relay, discharge gas thermostat, flow switch | Safety protection devices | Inner thermostat for compressor motor, unit overload relay,high and low pressure switch, freeze protection thermostat, reverse phase protection relay, discharge gas thermostat, flow switch | |||||||||||||||||||||
Dimension | Length | mm | 2150 | 2350 | 2450 | 2600 | 2750 | 2800 | 2800 | 2900 | 2900 | 3000 | Dimension | Length | mm | 3000 | 3100 | 3300 | 3500 | 3800 | 3900 | 4100 | 4300 | 4500 |
Width | mm | 560 | 620 | 650 | 680 | 780 | 950 | 950 | 950 | 950 | 1200 | Width | mm | 1200 | 1250 | 1380 | 1380 | 1380 | 1380 | 1450 | 1480 | 1480 | ||
Height | mm | 1550 | 1650 | 1650 | 1650 | 1650 | 1800 | 1950 | 1950 | 1950 | 1580 | Height | mm | 1580 | 1630 | 1630 | 1750 | 1750 | 1750 | 1780 | 1780 | 1780 | ||
Net weight | kg | 650 | 900 | 1050 | 1200 | 1550 | 1800 | 1900 | 2050 | 2050 | 2350 | Net weight | kg | 2500 | 2500 | 2650 | 2850 | 3150 | 3350 | 3620 | 3850 | 4160 | ||
Running weight | kg | 820 | 1050 | 1200 | 1400 | 1800 | 2100 | 2200 | 2350 | 2380 | 2530 | Running weight | kg | 2700 | 3000 | 3100 | 3350 | 3750 | 4000 | 4300 | 4600 | 5000 | ||
The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Cooling water inlet/outlet temperature 25℃/30℃. We reserve the right to modify the specifications without further notice. | The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Cooling water inlet/outlet temperature 25℃/30℃. We reserve the right to modify the specifications without further notice. |
Central Chiller Technical Specifications | ||||||||||||||
Model Items | TPAS-80ASH | TPAS-110ASH | TPAS-140ASH | TPAS-160ASH | TPAS-190ASH | TPAS-210ASH | TPAS-250ASH | TPAS-290ASH | TPAS-310ASH | TPAS-340ASH | TPAS-400ASH | TPAS-430ASH | ||
Cooling capacity | kcal/h | 68800 | 94600 | 122980 | 135020 | 164260 | 180600 | 212420 | 245100 | 266600 | 292400 | 348300 | 369800 | |
KW | 80 | 110 | 143 | 157 | 191 | 210 | 247 | 285 | 310 | 340 | 405 | 430 | ||
Input power | KW | 32.5 | 43.6 | 54.7 | 59.7 | 73.6 | 79.6 | 88.2 | 101.2 | 112.8 | 123.8 | 145 | 155 | |
Max Current | A | 57 | 75 | 95 | 103 | 125 | 135 | 151 | 173 | 191 | 211 | 246 | 263 | |
Power source | 3PH~380V/415V/480V~50HZ/60HZ(3PH~200V/220V 50HZ/60HZ) | |||||||||||||
Refrigerant | Type | R22(R134a/R407c/R404A) | ||||||||||||
Charge | kg | 21 | 28 | 35 | 42 | 49 | 56 | 63 | 70 | 77 | 84 | 98 | 112 | |
Control | Thermostatic expansion valve | |||||||||||||
Compressor | Type | Semi-hermetic screw | ||||||||||||
Power | KW | 30 | 40 | 50 | 55 | 67 | 73 | 82 | 95 | 104 | 115 | 134 | 142 | |
Start mode | Y-△ | |||||||||||||
Capacity control | % | 0-33-66-100 | 0-25-50-75-100 | |||||||||||
Evaporator | Type | Shell and tube (SS plate heat exchanger) | ||||||||||||
Chilled water | m³/h | 13.8 | 18.9 | 24.6 | 27.0 | 32.8 | 36.1 | 42.5 | 49.0 | 53.3 | 58.4 | 70.0 | 74.0 | |
Water pressure | KPa | 32 | 32 | 35 | 38 | 42 | 42 | 45 | 43 | 43 | 43 | 41 | 43 | |
Pipe connection | Inch | 3″ | 3″ | 3″ | 4″ | 4″ | 4″ | 4″ | 4″ | 5″ | 5″ | 6″ | 6″ | |

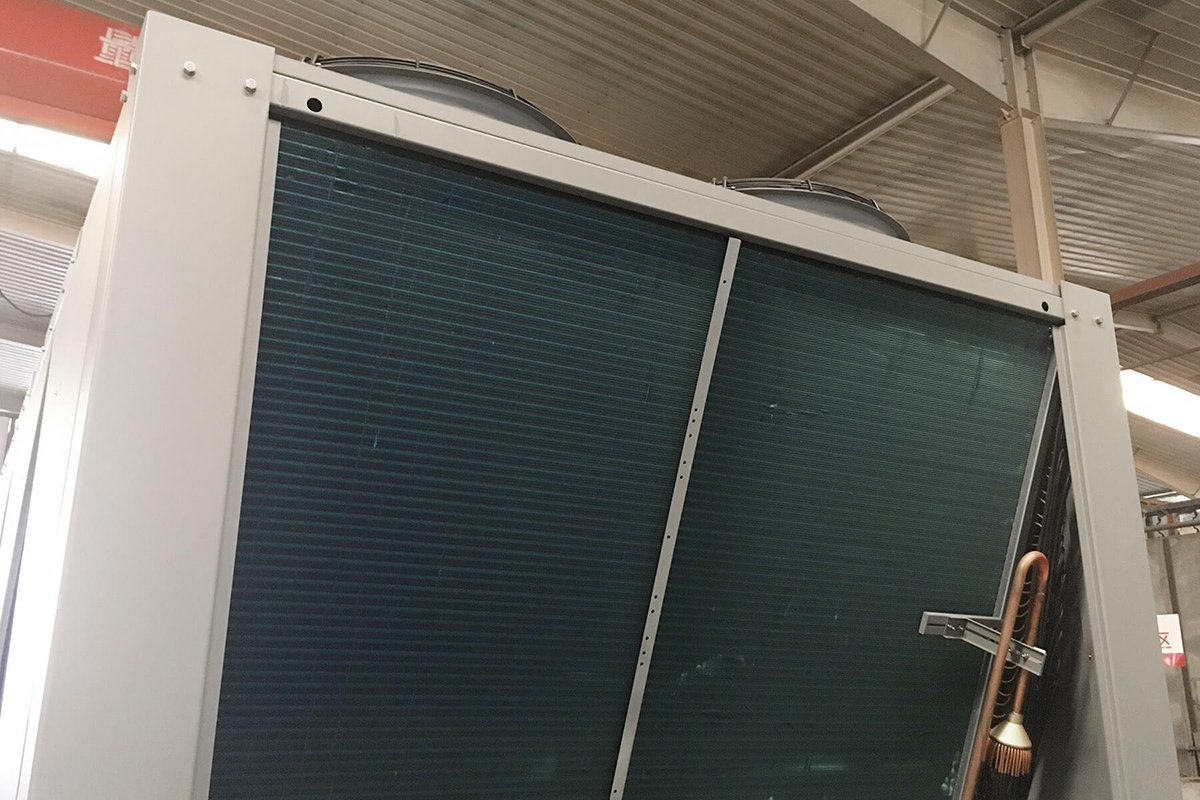

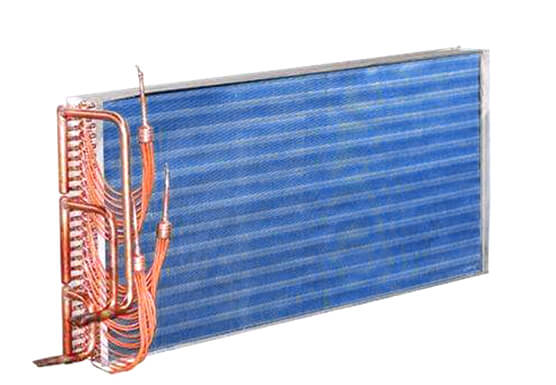

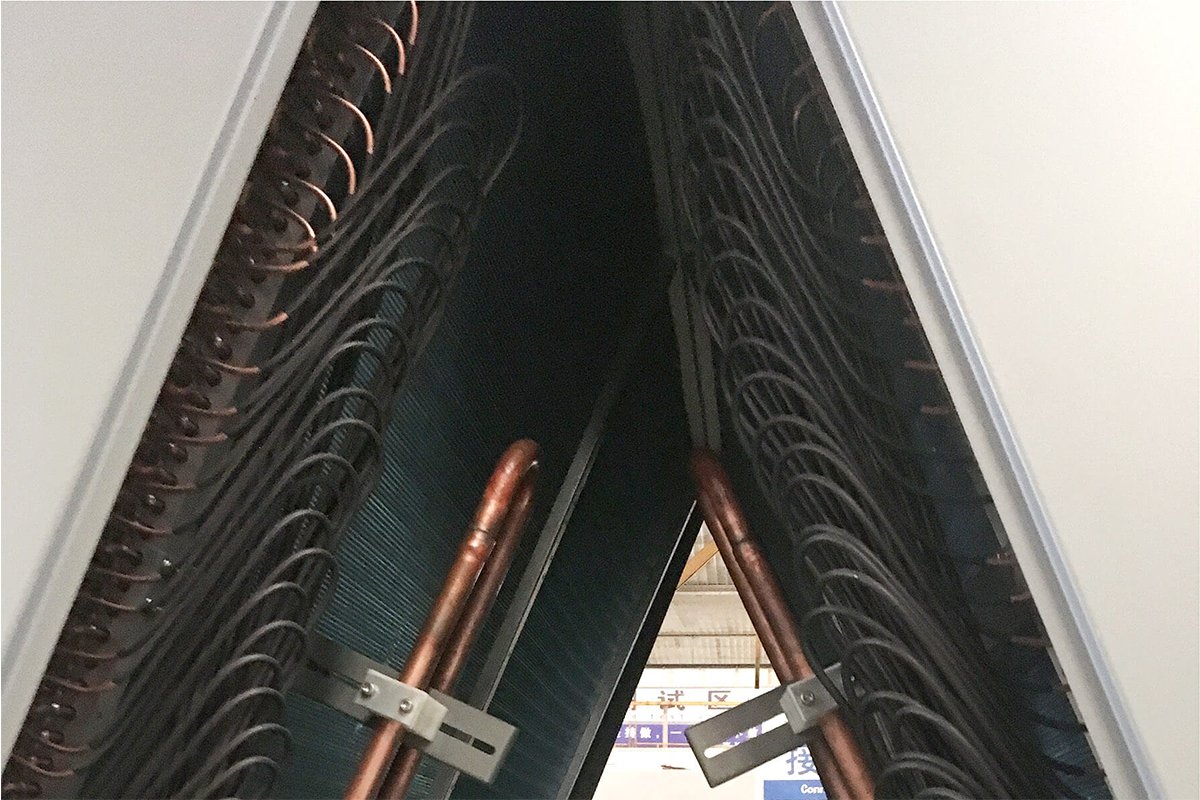

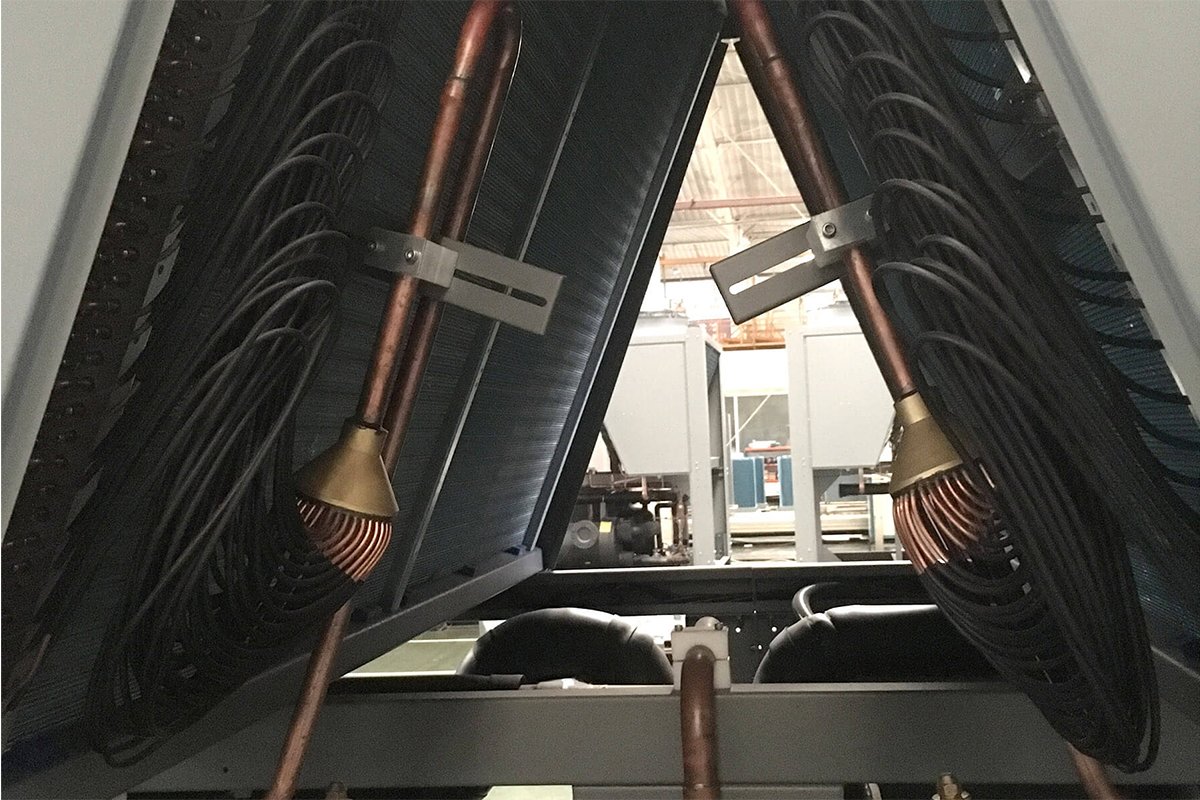

Condenser | Type | Air cooled type high efficiency finned cooper tube | ||||||||||||
Fan | Type | m³/h | Big volume & low noise axil fan | |||||||||||
Power | KW | 0.42×6 | 0.6×6 | 0.78×6 | 0.78×6 | 1.1×6 | 1.1×6 | 0.78×8 | 0.78×8 | 1.1×8 | 1.1×8 | 1.1×10 | 1.1×12 | |
Air volume | m³/h | 30000 | 40000 | 50000 | 60000 | 70000 | 80000 | 90000 | 100000 | 110000 | 116000 | 145000 | 165000 | |
Safety protection devices | Inner thermostat for compressor motor, unit overload relay,high and low pressure switch, freeze protection thermostat, reverse phase protection relay, discharge gas thermostat, flow switch | |||||||||||||
Dimension | Length | mm | 2200 | 2350 | 2600 | 2600 | 2650 | 2650 | 3400 | 3400 | 3800 | 3800 | 4800 | 5800 |
Width | mm | 1150 | 1350 | 1500 | 1500 | 1900 | 1900 | 1700 | 1700 | 1900 | 1900 | 1900 | 1900 | |
Height | mm | 1980 | 2000 | 2100 | 2100 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | |
Net weight | kg | 1100 | 1300 | 1600 | 1900 | 2200 | 2350 | 2550 | 2800 | 2850 | 2950 | 3200 | 3550 | |
Running weight | kg | 1300 | 1500 | 1840 | 2200 | 2530 | 2700 | 2950 | 3250 | 3350 | 3560 | 3650 | 3950 | |
The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Cooling air inlet/outlet temperature 30℃/38℃. We reserve the right to modify the specifications without further notice. |
Central Chiller Technical Specifications | Central Chiller Technical Specifications | |||||||||||||||||||||||
Model Items | TPW-200WDH | TPW-270WDH | TPW-350WDH | TPW-380WDH | TPW-460WDH | TPW-510WDH | TPW-600WDH | TPW-700WDH | TPW-750WDH | TPW-830WDH | Model Items | TPW-990WDH | TPW-1040WDH | TPW-1140WDH | TPW-1240WDH | TPW-1280WDH | TPW-1500WDH | TPW-1640WDH | TPW-1760WDH | TPW-1980WDH | ||||
Cooling Capacity | kcal/h | 172000 | 232200 | 301000 | 326800 | 395600 | 438600 | 516000 | 602000 | 645000 | 713800 | Cooling Capacity | kcal/h | 851400 | 894400 | 980400 | 1066400 | 1100800 | 1290000 | 1410400 | 1513600 | 1702800 | ||
KW | 200 | 270 | 350 | 380 | 460 | 510 | 600 | 700 | 750 | 830 | KW | 990 | 1040 | 1140 | 1240 | 1280 | 1500 | 1640 | 1760 | 1980 | ||||
Input Power | KW | 44 | 60 | 74 | 84 | 102 | 112 | 130 | 150 | 160 | 180 | Input Power | KW | 206 | 218 | 236 | 254 | 262 | 302 | 334 | 354 | 398 | ||
Max Current | A | 40 | 53 | 67 | 73 | 89 | 97 | 109 | 126 | 137 | 153 | Max Current | A | 354 | 374 | 406 | 436 | 450 | 520 | 576 | 612 | 490 | ||
Power Source | 3PH~380V/415V/480V~50HZ/60HZ(3PH~200V/220V 50HZ/60HZ) | Power Source | 3PH~380V/415V/480V~50HZ/60HZ(3PH~200V/220V 50HZ/60HZ) | |||||||||||||||||||||
Refrigerant | Type | R22 (R134a / R407c / R404A) | Refrigerant | Type | R22 (R134a / R407c / R404A) | |||||||||||||||||||
Charge | kg | 17×2 | 22×2 | 27×2 | 33×2 | 38×2 | 43×2 | 50×2 | 55×2 | 60×2 | 66×2 | Charge | kg | 82×2 | 88×2 | 94×2 | 100×2 | 110×2 | 121×2 | 132×2 | 143×2 | 165×2 | ||
Control | Thermostatic expansion valve | Control | Thermostatic expansion valve | |||||||||||||||||||||
Compressor | Type | Semi-hermetic screw | Compressor | Type | Semi-hermetic screw | |||||||||||||||||||
Power | KW | 22×2 | 30×2 | 37×2 | 42×2 | 51×2 | 56×2 | 65×2 | 75×2 | 80×2 | 90×2 | Power | KW | 103×2 | 109×2 | 118×2 | 127×2 | 131×2 | 151×2 | 167×2 | 177×2 | 199×2 | ||
Start mode | Y-△ | Start mode | Y-△ | |||||||||||||||||||||
Capacity Control | % | 0-33-66-100 | 0-25-50-75-100 | Capacity control | % | 0-25-50-75-100 | ||||||||||||||||||
Evaporator | Type | Shell and tube (SS plate heat exchanger) | Evaporator | Type | Shell and tube (SS plate heat exchanger) | |||||||||||||||||||
Chilled Water | m3/h | 34 | 46 | 60 | 65 | 79 | 88 | 103 | 120 | 120 | 143 | Chilled water | m³/h | 170 | 179 | 196 | 213 | 220 | 258 | 282 | 303 | 340 | ||
Water Pressure | KPa | 35 | 35 | 35 | 38 | 40 | 42 | 42 | 45 | 45 | 43 | Water pressure | KPa | 40 | 41 | 43 | 45 | 45 | 45 | 45 | 43 | 45 | ||
Pipe Connection | Inch | 4″ | 4″ | 4″ | 5″ | 5″ | 6″ | 6″ | 6″ | 8″ | 8″ | Pipe connection | Inch | 8″ | 8″ | 8″ | 8″ | 10″ | 10″ | 10″ | 12″ | 12″ | ||
Condenser | Type | Water cooled type shell and tube | Condenser | Type | Water cooled type shell and tube | |||||||||||||||||||
Cooling Water | m3/h | 42 | 57 | 73 | 80 | 97 | 107 | 126 | 146 | 156 | 174 | Cooling water | m³/h | 206 | 216 | 237 | 257 | 265 | 310 | 339 | 364 | 409 | ||
Water Pressure | KPa | 42 | 42 | 42 | 43 | 42 | 43 | 43 | 45 | 45 | 45 | Water pressure | KPa | 48 | 45 | 46 | 48 | 46 | 48 | 48 | 45 | 47 | ||
Pipe Connection | Inch | 4″ | 4″ | 4″ | 5″ | 6″ | 4″×2 | 4″×2 | 4″×2 | 5″×2 | 5″×2 | Pipe connection | Inch | 5″×2 | 5″×2 | 6″×2 | 6″×2 | 6″×2 | 8″×2 | 8″×2 | 10″×2 | 10″×2 | ||
Safety protection devices | Inner thermostat for compressor motor, unit overload relay,high and low pressure switch, freeze protection thermostat, reverse phase protection relay, discharge gas thermostat, flow switch | Safety Protection Devices | Inner thermostat for compressor motor, unit overload relay,high and low pressure switch, freeze protection thermostat, reverse phase protection relay, discharge gas thermostat, flow switch | |||||||||||||||||||||
Dimension | Length | mm | 2750 | 2800 | 2800 | 2950 | 2950 | 3150 | 3480 | 3480 | 3480 | 3650 | Dimension | Length | mm | 3650 | 3650 | 3750 | 3750 | 4230 | 4230 | 4350 | 4350 | 4420 |
Width | mm | 750 | 780 | 780 | 810 | 810 | 850 | 875 | 875 | 895 | 1120 | Width | mm | 1120 | 1220 | 1300 | 1450 | 1380 | 1480 | 1450 | 1560 | 1650 | ||
Height | mm | 1650 | 1650 | 1650 | 1650 | 1750 | 1750 | 1850 | 1850 | 1850 | 1950 | Height | mm | 1950 | 1950 | 2100 | 2150 | 2150 | 2250 | 2250 | 2300 | 2450 | ||
Net weight | kg | 1650 | 1800 | 1850 | 2200 | 2450 | 2650 | 2800 | 2800 | 3450 | 3750 | Net weight | kg | 3950 | 4100 | 4450 | 4700 | 5000 | 5250 | 5500 | 5750 | 6000 | ||
Running weight | kg | 1950 | 2180 | 2240 | 2660 | 2960 | 3200 | 3380 | 3580 | 4160 | 4360 | Running weight | kg | 4760 | 4770 | 5270 | 5460 | 5800 | 6100 | 6400 | 6680 | 6970 | ||
The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Cooling water inlet/outlet temperature 25℃/30℃. We reserve the right to modify the specifications without further notice. | The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Cooling water inlet/outlet temperature 25℃/30℃. We reserve the right to modify the specifications without further notice. |
Central Chiller Technical Specifications | ||||||||||||||
Model Items | TPAS-160ADH | TPAS-220ADH | TPAS-285ADH | TPAS-315ADH | TPAS-380ADH | TPAS-420ADH | TPAS-495ADH | TPAS-570ADH | TPAS-620ADH | TPAS-680ADH | TPAS-810ADH | TPAS-860ADH | ||
Cooling capacity | kcal/h | 137600 | 189200 | 245960 | 270040 | 328520 | 361200 | 424840 | 490200 | 533200 | 584800 | 696600 | 739600 | |
KW | 160 | 220 | 286 | 314 | 382 | 420 | 494 | 570 | 620 | 680 | 810 | 860 | ||
Input power | KW | 64.7 | 86.6 | 106.2 | 118.8 | 145 | 159.2 | 177.2 | 207.6 | 225.6 | 247.6 | 290 | 310.4 | |
Max Current | A | 114 | 149 | 185 | 205 | 250 | 274 | 308 | 358 | 388 | 428 | 500 | 533 | |
Power Source | 3PH~380V/415V/480V~50HZ/60HZ(3PH~200V/220V 50HZ/60HZ) | |||||||||||||
Refrigerant | Type | R22(R134a/R407c/R404A) | ||||||||||||
Charge | kg | 21×2 | 28×2 | 35×2 | 42×2 | 49×2 | 56×2 | 63×2 | 70×2 | 77×2 | 84×2 | 98×2 | 112×2 | |
Control | Thermostatic expansion valve | |||||||||||||
Compressor | Type | Semi-hermetic screw | ||||||||||||
Power | KW | 30×2 | 40×2 | 50×2 | 55×2 | 67×2 | 73×2 | 82×2 | 95×2 | 104×2 | 115×2 | 134×2 | 142×2 | |
Start mode | Y-△ | |||||||||||||
Capacity control | % | 0-33-66-100 | 0-25-50-75-100 | |||||||||||
Evaporator | Type | Shell and tube (SS plate heat exchanger) | ||||||||||||
Chilled water | m³/h | 27.5 | 37.8 | 49.1 | 54 | 65.7 | 72.2 | 85 | 98 | 106.6 | 117 | 139.3 | 147.9 | |
Water pressure | KPa | 32 | 32 | 35 | 38 | 42 | 42 | 45 | 43 | 43 | 43 | 41 | 43 | |
Pipe connection | Inch | 4″ | 4″ | 4″ | 5″ | 6″ | 6″ | 6″ | 6″ | 8″ | 8″ | 8″ | 10″ | |
Condenser | Type | Air cooled type high efficiency finned cooper tube | ||||||||||||
Fan | Type | m³/h | Big volume & low noise axil fan | |||||||||||
Power | KW | 0.78×6 | 1.1×6 | 0.78×8 | 1.1×8 | 1.1×10 | 1.1×12 | 1.1×12 | 1.1×16 | 1.1×16 | 1.1×16 | 1.1×20 | 1.1×24 | |
Air volume | m³/h | 60000 | 80000 | 100000 | 116000 | 145000 | 165000 | 180000 | 205000 | 225000 | 242000 | 285000 | 325000 | |
Safety protection devices | Inner thermostat for compressor motor, unit overload relay, high and low pressure switch, freeze protection thermostat, reverse phase protection relay, discharge gas thermostat, flow switch | |||||||||||||
Dimension | Length | mm | 2600 | 2650 | 3400 | 3800 | 4800 | 5800 | 5800 | 7800 | 7800 | 8000 | 9800 | 11600 |
Width | mm | 1500 | 1900 | 1700 | 1900 | 1900 | 1900 | 2200 | 2000 | 2200 | 2200 | 2200 | 2200 | |
Height | mm | 2100 | 2200 | 2200 | 2200 | 2200 | 2200 | 2300 | 2250 | 2250 | 2300 | 2350 | 2350 | |
Net weight | kg | 2050 | 2520 | 2980 | 3180 | 3420 | 3730 | 3950 | 4330 | 4650 | 4930 | 5450 | 5850 | |
Running weight | kg | 2360 | 2870 | 3420 | 3690 | 3780 | 4180 | 4380 | 4650 | 4920 | 5360 | 5830 | 6530 | |
The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature 12℃/7℃. 2, Cooling air inlet/outlet temperature 30℃/38℃. We reserve the right to modify the specifications without further notice. |
