TopChiller can design and manufacture all types of milk chilling systems for you
- Chiller capacity ranges from 2 Ton to 150 Ton
- Temperature control ranges from -15°C to 10°C
- World-class branded efficient compressor
- Lower raw milk spoilage by killing microbes
- Large capacity water-cooled condenser
- SS plate type heat exchanger/SS pump
- Lower maintenance and operating costs
- Warranty up to 24 months after buying
Your Premier Milk Chilling System Manufacturer and Supplier Over 20 Years
For the dairy and milk industry, the temperature is the key factor to determine the quality and taste of dairy products.
Accurate temperature control is very important in the key processes of dairy production and storage, such as storage tank, fermentation, cooling, canning, freezing, and so on.
TopChiller has many years of experience in this field, provides professional refrigeration solutions and technical support for many leading dairy companies around the world, and has become a leading supplier of water chillers in the dairy processing industry.
We have a series of reliable, efficient, and environmentally-friendly professional refrigeration solutions to bring customers accurate temperature control and stable system operation.
Chiller and Water Cooling System for Milk Chilling is specially designed to provide cooling to the milk right after pasteurization by using chilled water circulation.
TopChiller is the competent manufacture and supplier of Dairy Chiller and Water Cooling System for Milk Chilling in China configuring great importance to quality control efficient performance of Chiller for universal recognition and credibility.
Since 1999, TopChiller has been offering customized and wide assorted Chiller and Water Cooling systems for Milk Chilling to all our permanent customers and global markets ensuring milk quality and taste.

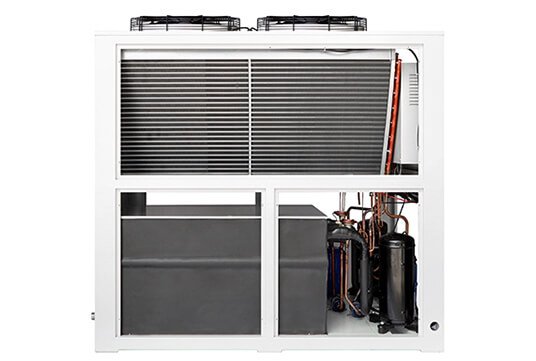

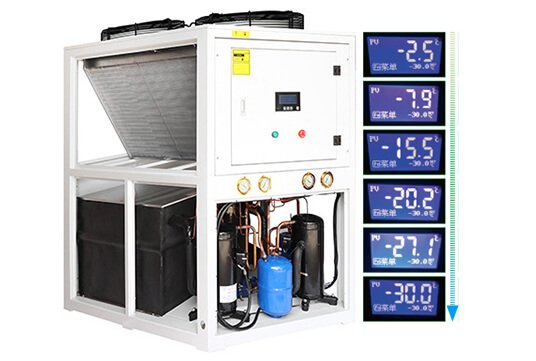

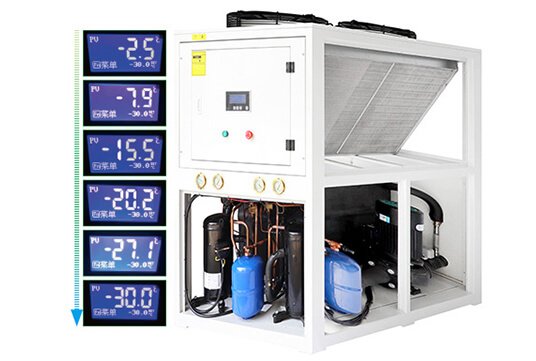

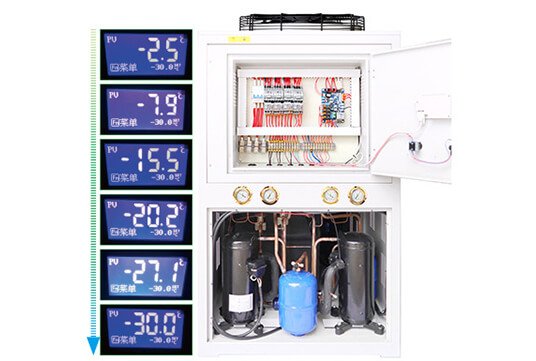

Chiller and Water Cooling System for Milk Chilling is made of some primary components as a scroll/screw compressor, control panel, heat exchanger, refrigeration storage tank, water-cooled condenser, evaporator, and electric control system.
TopChiller engineered Chiller and Water Cooling System for Milk Chilling is used for milk processing with a variety of advantages as given below.
- Chiller and Water Cooling System for Milk Chilling ensures the chilling of pasteurized milk and increases the shelf life of milk by providing fluent cooling configured by the circulation of chilled water around the milk tank.
- TopChiller designed Chiller and Water Cooling System for Milk Chilling is steady and energy-efficient in performance preventing the owner from extra expenses by using well water to cool milk before entering into the refrigerant tank for further cooling featured by the use of pre coolant installation.
- Chiller and Water Cooling System for Milk Chilling configures the instant cooling of milk by compression pressure provided by a compressor on refrigerant flow arresting bacterial growth.
- TopChiller engineered Chiller and Water Cooling System for Milk Chilling works smoothly without producing pollution and noise configured by the installation of solenoid and expansion valves and filters.
- Chiller and Water Cooling System for Milk Chilling supports milk packaging as well dairy milk processing with lower maintenance time featured by the use of plate type heat exchanger for cleaned coolant circulation
Chiller and Water Cooling System for Milk Chilling is used for different applications concerning milk chilling and preserving as:
Dairy milk processing, chocolate production, milk preservation and packing, juices preservation, etc.
If you are considering buying the best working and energy-efficient Chiller and Water Cooling System for Milk Chilling for your specific application?
If you are pondering over a fluent and steadfast Chiller and Water Cooling System for a Milk Chilling manufacturing company in China to get keen help about your application?
Your queries are going to be ended at the TopChiller platform. Make a call or do visit TopChiller Company, discuss all of your problems and get a quote for purchasing a Chiller and Water Cooling System for a Milk Chilling.
TopChiller staff will guide you as you want in purchasing a Chiller and Water Cooling System for Milk Chilling at handsome costs for your application.
- Data Sheet
- Image Gallery
- Main Parts
- Video
Milk Chilling System Technical Specification
| Items/Model | Temp. | TPL-3AL | TPL-5AL | TPL-6AL | TPL-8AL | TPL-10AL | TPL-12AL | TPL-15AL | TPL-20AL | TPL-25AL | TPL-30AL | TPL-40AL | ||
| Cooling Capacity | KW 50HZ/60HZ | -10℃ | 3.80 4.60 | 6.30 7.60 | 7.50 9.00 | 9.10 10.90 | 13.20 15.80 | 16.10 19.30 | 19.50 23.40 | 26.40 31.70 | 32.20 38.60 | 39.00 46.80 | 52.00 62.40 | |
| -20℃ | 1.90 2.30 | 3.00 3.60 | 4.00 4.80 | 6.00 7.20 | 7.10 8.50 | 8.00 9.60 | 13.90 16.70 | 16.90 20.30 | 20.80 25.00 | 24.40 29.30 | 30.80 37.00 | |||
| -30℃ | 1.00 1.20 | 1.60 1.90 | 1.90 2.30 | 2.70 3.20 | 3.20 3.80 | 3.80 4.60 | 6.10 7.30 | 9.50 11.4 | 12.10 14.50 | 14.30 17.10 | 19.00 22.80 | |||
| -35℃ | 0.67 0.80 | 1.04 1.25 | 1.50 1.80 | 2.30 2.80 | 2.80 3.40 | 3.00 3.60 | 4.30 5.20 | 6.35 7.62 | 8.30 10.00 | 10.10 12.10 | 13.35 16.00 | |||
| Evaporator | Chilled Water (m³/h) | -10℃ | 0.65 0.79 | 1.10 1.30 | 1.30 1.50 | 1.60 1.90 | 2.30 2.70 | 2.80 3.30 | 3.40 4.10 | 4.50 5.40 | 5.60 6.70 | 6.70 8.10 | 9.00 10.80 | |
| -20℃ | 0.33 0.40 | 0.52 0.62 | 0.69 0.83 | 1.10 1.30 | 1.23 1.47 | 1.38 1.65 | 2.39 2.87 | 2.85 3.45 | 3.57 4.30 | 4.20 5.04 | 5.30 6.36 | |||
| -30℃ | 0.17 0.21 | 0.28 0.33 | 0.33 0.40 | 0.47 0.55 | 0.55 0.65 | 0.65 0.80 | 1.10 1.30 | 1.60 2.00 | 2.10 2.50 | 2.46 2.90 | 3.30 3.90 | |||
| -35℃ | 0.12 0.14 | 0.18 0.22 | 0.26 0.31 | 0.40 0.48 | 0.48 0.58 | 0.52 0.62 | 0.72 0.89 | 1.10 1.31 | 1.43 1.72 | 1.74 2.09 | 2.30 2.76 | |||
| Type | Shell and tube type/Plate type heat exchanger | |||||||||||||
| Inlet/outlet pipe | lnch | 1″ | 1″ | 1″ | 1″ | 1-1/2″ | 1-1/2″ | 2″ | 2″ | 2″ | 2-1/2″ | 2-1/2″ | ||
| Input power | KW | 3.18 | 4.86 | 5.61 | 7.25 | 9.4 | 10.9 | 13.5 | 18.8 | 22.55 | 28.5 | 37.5 | ||
| Max Current | A | 7.8 | 12 | 13.7 | 18 | 23 | 26.5 | 33 | 46 | 55 | 69 | 91 | ||
| Power Source | 3PH～380V/415V/480V～50HZ/60HZ(3PH～200V/220V 50HZ/60HZ) | |||||||||||||
| Refrigerant | Type | R22(R404A/R507) | ||||||||||||
| Control | z | |||||||||||||
| Compressor | Type | Hermetic scroll ( piston ) | ||||||||||||
| Power | KW | 2.25 | 3.75 | 4.5 | 6 | 7.5 | 9 | 11.3 | 7.5*2 | 9.37*2 | 11.3*2 | 30 | ||
| Condenser | Type | Efficient finned copper tube with aluminum + low noise external rotor fan | ||||||||||||
| Water pump | Power | KW | 0.75 | 0.75 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | |
| Max lift | m | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 25 | 20 | ||
| Safety protection | Compressor inner protection, over current protection, high / low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection | |||||||||||||
| Dimension | Length | mm | 980 | 1150 | 1150 | 1350 | 1500 | 1500 | 1860 | 2020 | 2020 | 2200 | 2350 | |
| Width | mm | 520 | 560 | 560 | 680 | 760 | 760 | 850 | 950 | 950 | 1150 | 1350 | ||
| Height | mm | 1170 | 1215 | 1215 | 1530 | 1660 | 1660 | 1900 | 2000 | 2000 | 1980 | 2000 | ||
| Net weight（KG） | Kg | 135 | 165 | 210 | 310 | 450 | 530 | 750 | 835 | 920 | 1080 | 1125 | ||
| Note: The above specifications are according to the following design conditions: 1, Chilled water inlet/outlet temperature difference 3℃/8℃. 2, Cooling air inlet/outlet temperature 30℃/38℃ | ||||||||||||||
Why TopChiller is Your Reliable Milk Chilling System Manufacturer and Supplier In China?
Other Product Types Related With Milk Chilling System
TopChiller: Your Premier Milk Chilling System Manufacturer and Supplier in China
TopChiller’s advanced refrigeration solution has been successfully applied to multiple processes of dairy processing, bringing you quality assurance, safety, and efficiency:
Accurate temperature control solutions for milk processing are widely used in raw milk storage, pasteurization, canning, and cold storage to ensure the quality of milk.
Ice cream processing freezer assembles TopChiller refrigeration control valve, which can improve the expansion rate and crystallization effect of ice cream products.
Yogurt processing refrigeration scheme is widely used in post-fermentation cooling and yogurt cold storage process to ensure the taste and storage life of yogurt products.
