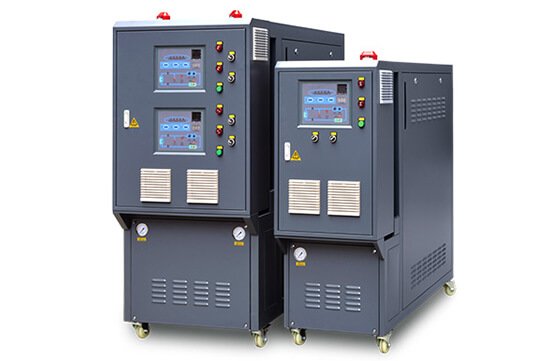

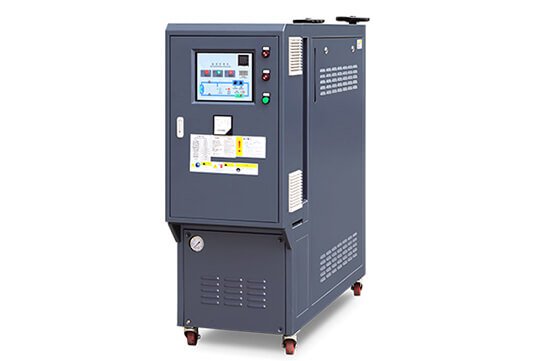

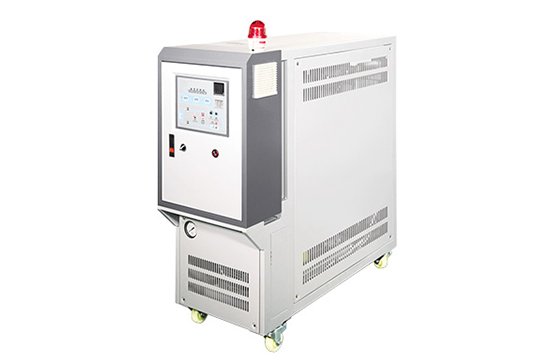

TopChiller can design and manufacture all types of Temperature controller units for you
- Heating capacity ranges 9KW-136KW
- Max. heating temperature up to 250°C
- Two tank circulation valve and heater

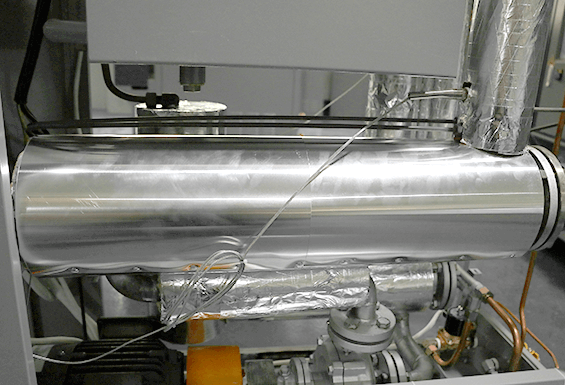

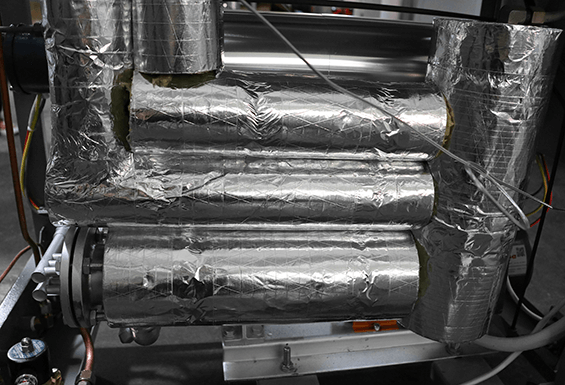

- High-efficiency SS water/oil fluid heater
- High flow rate with low power usage
- Recirculating pump and SS cabinet
- Full ranges of protection devices
- Easy installation and operation
Your Premier Temperature controller unit Manufacturer and Supplier Over 20 Years

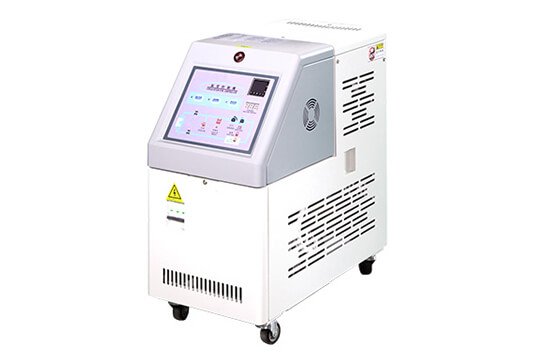

Temperature Controller Unit is a peculiar designed heating device that configures the regulation of processing temperature or preheats fluids circulating in machines by using heated oil or water circulation.
TopChiller is a competent company of China that is flourishing day by day among the world’s best competitive associations with a motive to avail the customers and retailer companies with advanced technology-based Temperature Controller Unit.
For over twenty years, TopChiller is focusing on introducing modern technology and customizing features in the manufacturing of Temperature Controller units with a variety of different sizes and supplying to the whole world marketplace.
Temperature Controller Unit is mainly composed of, heat exchanger, suction valves, refrigerant tank, water tank, heater, fluid pumps, power supply, coils and piping, and protecting devices.
TopChiller manufactured Temperature Controller Unit is renowned among different heating processes having a variety of benefit as given below:
- TopChiller designed Temperature Controller Unit ensures the quality of products requiring heat during manufacturing featured by the use of heated water or oil circulation in coils around machine fluids and preheats it before running in machines.
- Temperature Controller Unit configures the consistent heating regulation in heating required applications by using precise heaters as well powerful working pumps that hit the fluids inside the unit to flow persistently.
- TopChiller engineered Temperature Controller Unit provides the heating regulation inside processing machines distinctively either by using closed-loop circulation or open-loop circulation providing a diverse range for different applications.
- Different laboratory instrument heating requirements, and plastic products manufacturing, are configured and regulated at a set point by the use of an energy-efficient heating exchanger for instant heat release from machine preserving plastic from deformation and laboratory specimens’ protection.
- TopChiller Temperature Controller Unit is featured with a modulation system either with two or three choices to update as microprocessor working, branded heaters, or high-pressure circulation to work precisely at a time to release heat.
Temperature Controller Unit regulates the temperature with high accuracy and is used for different applications as:
Pharmaceutical industry, shelters, dryers, centralized showcases, cold rooms, compressor racks, CRAC, metalworking, compressor racks, autoclaves, incubators packaging industry, dryer dye casting, beverages, heat recovery unit and woodworks, etc.
Are you incisively finding the best heating solution for your application and want to buy a Temperature Controller Unit?
Are you wandering over in quest of a trusted company that will service diligently by providing a Temperature Controller Unit to build up your business?
You are following the right track. TopChiller is a trustworthy company you will find working all around the world. Just move ahead and make contact with TopChiller trained employees to clear your queries or buy help in the selection of a Temperature Controller Unit.
TopChiller personnel will help you in purchasing a Temperature Controller Unit suitable for your application in lower amounts.
- Data Sheet
- Image Gallery
- Main Parts
- Video
Temperature Controller Unit Technical Specifications | |||||||||||
Item Model | TP-6MT | TP-9MT | TP-12MT | TP-9MT | TP-12MT | TP-24MT | TP-9MT | TP-12MT | TP-24MT | ||
Heat transfer | Water / Oil | ||||||||||
Temperature | ℃ | 30~120~200 | 30~150~300 | 30~180~350 | |||||||
Stability | PID±1℃ | ||||||||||
Heat Power | KW | 6 | 9 | 12 | 9 | 12 | 24 | 9 | 12 | 24 | |
Power | Volt | 3Phase-380V/480V-50HZ | |||||||||
Pump | Power | KW | 0.37 | 0.75 | 1.5 | 0.75 | 1.5 | 2.2 | 0.75 | 1.5 | 2.2 |
Flow Rate | L/min | 35 | 60 | 200 | 95 | 153 | 235 | 95 | 153 | 235 | |
Pressure | kg/c㎡ | 3.5 | 4 | 4 | 6 | 6 | 6 | 12 | 12 | 12 | |
Consumption | KW | 7 | 10 | 11 | 10 | 14 | 26 | 12 | 14 | 26 | |
Protection | Phase wrong, missing / water oil lacking / over and low pressure / overload | ||||||||||
Mode | Direct | Indirect | |||||||||

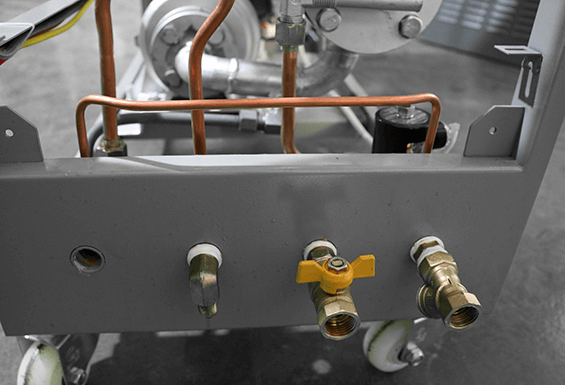

Diameter | Inlet | lnch | 3/8×2 | 3/8×4 | 3/8×4 | 3/8×4 | 3/8×4 | 3/8×4 | 3/8×4 | 3/8×4 | 3/8×4 |
Outlet | lnch | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | |
Size | L | mm | 625 | 625 | 625 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
W | 325 | 325 | 325 | 440 | 440 | 550 | 550 | 550 | 600 | ||
H | 580 | 580 | 580 | 1250 | 1250 | 1250 | 1250 | 1250 | 1400 | ||
Weight | kg | 62 | 65 | 75 | 120 | 150 | 180 | 220 | 300 | 360 | |
Note : Water pressure should be bigger than 2kg/㎡; while water type mold temperature controller connectedto the tap water. |
